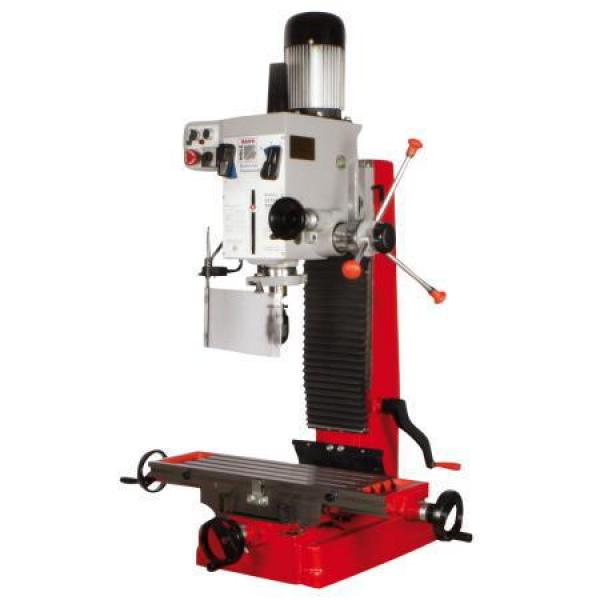

ZX7045400V Holzmann milling machine
ZX7045400V Holzmann milling machine
ZX7045400V Holzmann milling machine

ZX7045400V Holzmann milling machine

Product No.:
ZX7045400V
2-4 days 2-4 days (abroad may vary)
  • Spare parts supply
  • Top quality
  • Happy customers
  • Secure payment
  • Authorized dealers

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
305 kg per piece
1.972,90 EUR

19% VAT excl. Shipping costs

Ask about product
Description

Product Highlights ZX7045400V Holzmann milling machine​

  • Gear head precisely height-adjustable and pivotable (360°) via dovetail guide
  • Dovetail guides ensure highest accuracy
  • 14mm T-slot guides in the cross table allow easy and fast fixing of vices
  • Sleeve feed via three-arm lever and precision handwheel with depth scaling
  • fold-away drill chuck guard made of plexiglass
  • with thread cutting device
  • optional base frame with practical tool compartment
  • Base frame optional

Scope of delivery ZX7045400V Holzmann milling machine​

  • Drill chuck 16mm,
  • Reduction MK4/3, MK3/2,
  • Drift wedge,
  • Tightening spindle M12

Technical data ZX7045400V Holzmann milling machine​

Motor data​
  • Motor power S1 in W: 1100
  • Motor power S6 in W: 1500
  • voltage: 400 V
  • cable length: 2,5 m
General dimensions​
  • Throat in mm: 245
  • Table size in mm: 210x730
Technical specification​
  • max. drilling capacity steel in mm: ø32 (M16)
  • milling spindle speed in min-1: 95-1600 (6)
  • Drilling spindle holder: MK4 / MT4
  • Y-axis travel in mm: 205
  • X-axis travel in mm: 490
  • max. distance spindle-table in mm: 465
  • max. drilling capacity cast iron in mm: ø45 (M20)
  • quill stroke in mm: 120
  • max. milling diameter in mm: 80
  • max. diameter of finger cutter in mm: 25
  • Gross weight in kg: 305
