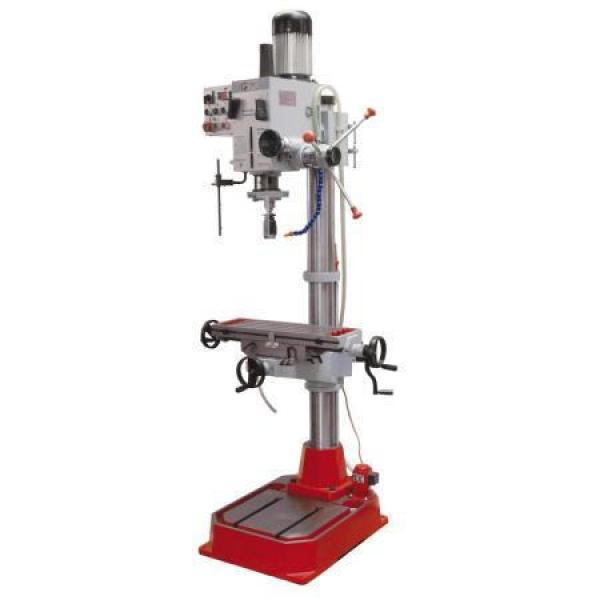

ZX40PC400V Holzmann gear drilling machine

Product highlights ZX40PC400V Holzmann gear drilling machine​

• solid base plate for high stability
• T-slot guides (14mm) in the cross table for easy, quick fixing of vices etc.
• highest flexibility due to rotatable and height-adjustable drill head
• fold-away plexiglass chuck cover
• Coolant system as standard
• with automatic thread cutting device and left-right rotation
• Sleeve feed via three-arm lever and precision hand wheel with depth scaling
• Oil bath gears with ground and hardened gear wheels
• solid base plate for good stability
• Powerful motor ensures high drilling performance

Scope of delivery ZX40PC400V Holzmann gear drilling machine​

• Drill chuck 16mm,
• Reduction MK4/3, MK3/2,
• Drift wedge,
• tightening spindle M12

Technical data ZX40PC400V Holzmann gear drilling machine

• Motor power S1 in W: 1100
• Motor power S6 in W: 1500
• voltage: 400V

• Projection in mm: 272.5
• max. height in mm: 2160
• Table size in mm: 190x585

• Distance spindle - base plate in mm: 1270
• Column diameter in mm: 115
• quill stroke in mm: 120
• max. drilling capacity in mm: 40
• milling spindle speed in min-1: 95-1600
• Drilling spindle holder: MK4 / MT4
• max. distance spindle-table in mm: 754
• Gross weight in kg: 410
