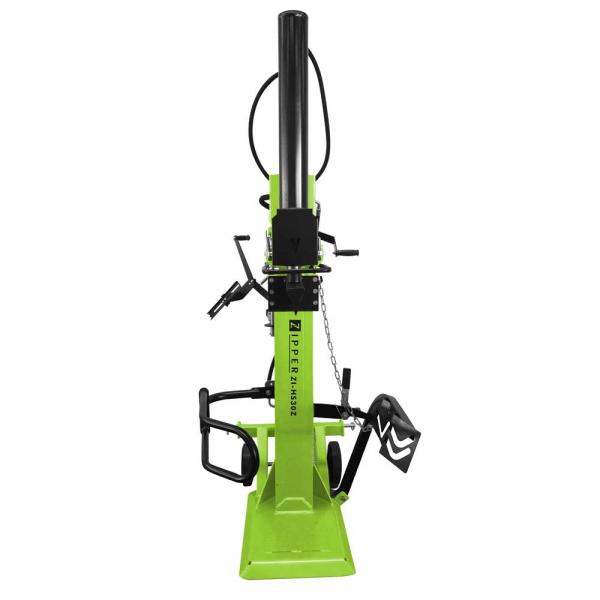

Zipper Wood Splitter ZI-HS30Z

Product highlights Zipper log splitter ZI-HS30Z

• Vertical version for splitting long wood - 1100 mm
• Forward running has two speed levels (slow and fast)
• Operation only via PTO
• Combination 3-point suspension (KAT 1)
• Sturdy torsion-resistant steel construction
• fast working due to infinitely adjustable splitting stroke
• state-of-the-art safety operation according to the new standard of 2017
• including log lifter
• incl. driving device for a comfortable transport
• min. Tractor drive power of ~12kW required (PTO 540min-1)

Technical data Zipper Wood Splitter ZI-HS30Z

• Installation dimensions in mm: 1050x1700x2500

• Splitting force in t: 30
• max. splitting stroke in mm: 948
• Splitting material diameter in mm: 80-400
• Splitting length (without accessories) in mm: 560-1100
• Hydraulic oil capacity in l: 30
• Hydraulic stroke in MPa: 23.46
• Forward speed in cm/s: 2.4 / 8.1
• Reverse speed in cm/s: 4.4

• Sound pressure level in dB(A): <80
• Handle vibration in m/s2: <2.5

• Gross weight in kg: 351
• Net weight in kg: 333

• Packing width in mm: 680
• Packing length in mm: 970
• Packaging height in mm: 2,000

• EAN Code: 9120039233727
