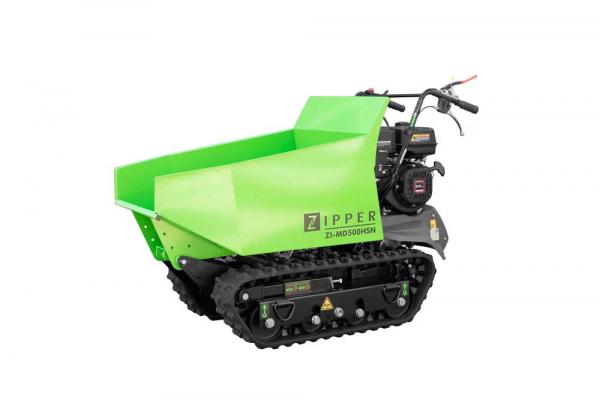

Zipper mini dumper ZI-MD500HSN

Product Highlights Zipper mini dumper ZI-MD500HSN

• the all-rounder for the transport of bulk material over difficult terrain
• goes easy through tight ways and doors due to narrow construction

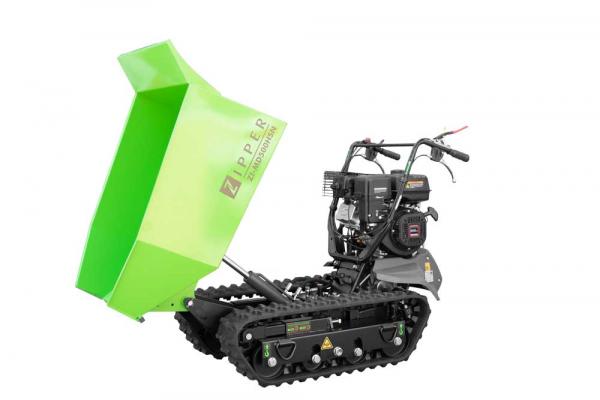

• hydraulic tilt function
• solid steel design
• Gear drive 6Forward + 2Reverse
  • low speed (1): V1(1): 1,21-1,44 km/h V2(1): 1,66-2,4 km/h V3(1): 1,8-3,1 km/h R1(1): 0,82-1,1km/h
  • high speed (2): V1(2): 1,8-2,2 km/h V2(2): 2,5-3,6 km/h V3(2): 2,7-4,6 km/h R1(2): 1,23-1,66 km/h
• wheel protection and rubber chain
• easy operation
• powerful 300cm³ 6,8 kW motor

Technical Details Zipper mini dumper ZI-MD500HSN

• motor power s1 in W: 6800
• engine type: LONCIN G300FA
• displacement in ccm: 302
• speed in min-1: 3600
• fuel type: Benzin ROZ 95
• transmission: 6V + 2R

• payload in kg: 500
• container dimensions in mm: 950 x 680 x 465
• track width in mm: 180
• hydraulic pump in l/min: 9
• total dimensions in mm: 1705 x 704 x 975

• sound power level in dB(A): 101

• gross weight in kg: 367
• net weight in kg: 299

• packaging width in mm: 737
• packaging length in mm: 1.630
• packaging height in mm: 1.177

• EAN code: 9120039234106

Included in delivery Zipper mini dumper ZI-MD500HSN

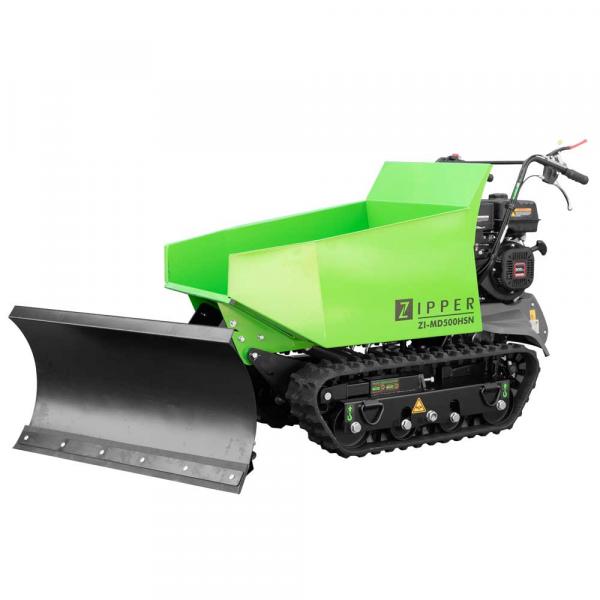

• snowblade
