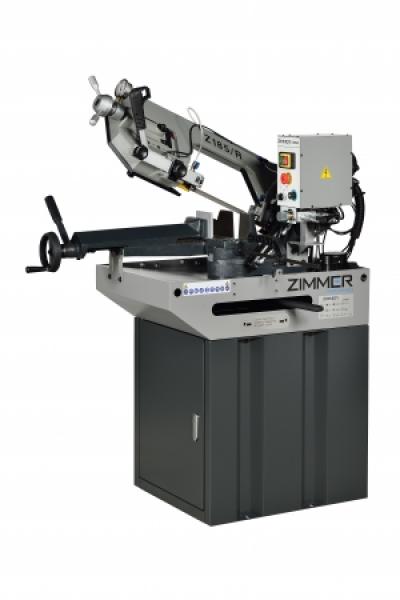

Zimmer Z185-1/R band saw machine
Product Highlights Zimmer Z185-1/R band saw machine
Metal band saw with infinitely variable electronic speed control and automatic lowering.
The Z185/R is a self-lowering saw for mitre cuts from 0° to 60° left. After the cut the machine stops by a safety limit switch. The lowering is infinitely adjustable via a hydraulic system. The manual lifting of the saw arm after the cut can be done in any position. The saw arm stops at the desired position.
- Selector switch for hydraulically controlled or manual belt arm lowering
- Saw arm tiltable up to 60° right
- Quick clamping vice
- Band guide with 8 ball bearings
- Hydraulic saw blade tensioning with clamping pressure display and blade breakage switch-off
- Incl. coolant system
- Incl. machine base cabinet
Technical data Zimmer Z185-1/R band saw machine
| Engine power | 230V / 2,35 kW |
| Bank opening | 230 mm |
| Tape measures | 2085 x 20 x0,9 mm |
| Weight | 195 Kg |
| Speed | 30 - 75 m/min. |
| Cutting surface 0° | 185 / 150 x 150 / 220 x 150 mm |
| Cut surface 45° right | 110 / 100 x 100 / 110 x 90 mm |
| Cut surface 45° left | |
| Cut surface 60° right | 70 / 70 x 70 / 70x70 mm |
| Cut surface 60° left |
