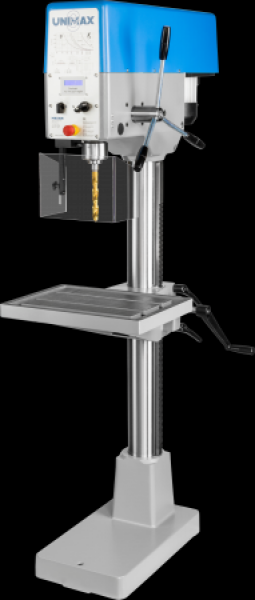

Zimmer UNIMAX 3 pillar drilling machine

Product highlights Zimmer UNIMAX 3 pillar drilling machine

Powerful, precise pillar drill with a wide range of applications, drill table adjustable via rack and worm gear and can be swivelled around the pillar. Right/left rotation reversing switch. Emergency stop button. Full motor protection. Star grip. Digital display for speed as standard.

UNIMAX 3

• Stepless spindle speeds
• Range A 80-1,440 rpm
• Range B 180-3,200 rpm

Technical data Zimmer UNIMAX 3 pillar drilling machine

• Continuous drilling capacity 25 mm
• Normal drilling capacity 30 mm
• Tapping capacity M 20
• Spindle MK 3
• Drilling depth 125 mm
• throat depth 260 mm
• Spindle/table 90 to 840 mm
• Table surface 500 x 365 mm
• Column diameter 110 mm
• Total height 1855 mm
• Weight 270 kg
• Pole-changing motor 0.8/1.5 kW
