Zimmer MEP TIGER 402 CNC HR 4.0 RC metal circular saw for aluminium

TIGER 402 CNC HR 4.0 RC, automatic electromechanical vertical circular saw for the use of carbide saw blades to perform serial cuts with automatic mitre adjustment between 45° right to 45° left.
The machine also works in semi-automatic cycle. CNC - automatic machine with multi-microprocessor and with two controlled axes, which allow to program up to 32 different cutting programs of different cutting lengths and number of pieces for the same material thickness.

• Display with 48 characters x 16 lines to show the technical parameters such as:
• saw blade speed - number of programmed and executed cuts
• Saw blade thickness - feed length - cutting time - ammeter - display of approx. 80
• Diagnostic messages and warnings, all in the respective user language.
• Three-stage gearbox to ensure high strength and precision and a high chip removal capacity.
• The model is equipped with a complete housing to achieve three important objectives:
• Operator safety (during the work cycle, a device prevents intervention and the opening is locked in time).
• Sound insulation
• The possibility to work with a large quantity of coolant (120 l/min) to cool down, to continuously rinse the worktable, to convey the chips in the unloading side, thus ensuring a longer life of the saw blades.

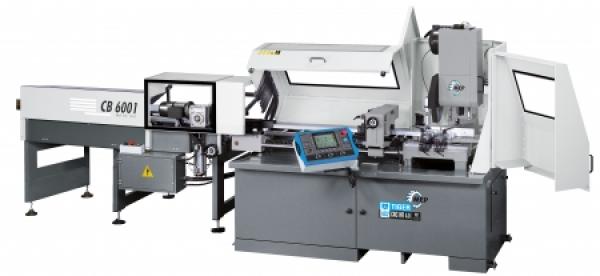

• In order to obtain a high production capacity of round and square material, the machine can be equipped with a CB 6001 barre magazine.

Other characteristics:​

• The machine is provided with two connection pipes for chip extraction
• The saw head glides on recirculating ball bearing linear double guides
• Full enclosure
• Saw head feed with electro-mechanical cylinder to ensure high strength of cut. This also provides an automatic comparison of the stored data and the cutting parameters can be corrected immediately.
• Rotation axis with thrust bearing to ensure precision and stability of rotation.
• Material feeding (length 1000 mm) ball screw with stepping motor and movable feeder vice to feed even slightly curved material.
• Control panel for electrical and electronic components with marked cable connections, main switch provided for padlock, emergency stop,
• Thermal magnetic protection, undervoltage release, phase failure protection
• Control panel with low voltage:
• Polyester membrane keyboard with thermoformed highlighted push-buttons and actuation control signal
• Stroke path of the saw head can be programmed directly from the control panel, for adaptation to the cutting material.
• Console for programming and control, LCD display with autodiagnostics.
• The saw blade is driven by a motor with two speeds of 1400 and 2800 rpm, thus always obtaining the best cutting performance.
• Base frame with chip drawer, which can also be replaced by a motorised chip conveyor. (see special accessories)
• 2 pneumatic vices at the saw cut
• Counterholder for double locking of the workpiece.
• Pneumatic vertical vice for sawing different bars.
• Indicator light for programme end or emergency stop
• Shielding against electrical or electromechanical interference from and to the outside.
• Coolant gun for rinsing the work surface
• Machine designed for lift truck transport.
• HM Saw blade
• Tools and operating instructions in the respective user language

Electrical equipment:​

• Switchboard
• 32 different cutting programs for material length and number of pieces programmable
• Control lamp for operational readiness
• Safety main switch
• Console for programming and control, LCD display with autodiagnostics
• LED check Display on the control console for checking the machine functions
• Emergency stop button
• Speed switch
• Thermal magnetic protection
• Undervoltage release
• Switch handle Protection class IP 55
• Low voltage system 24 Volt
• Electrical coolant device for lubrication and cooling of the saw blade (attachment of a micro-spray device possible)
• motor 4,4 kW - 400 Volt

Technical data Zimmer MEP TIGER 402 CNC HR 4.0 RC metal circular saw for aluminium​

Engine power	3,3/4,4 kW
Bank opening	185 mm
Tape measures	400x32
Weight	1.060 Kg
Speed	1400/2800 1/min.
Cutting surface 0°	130 / 120 / 180x100
Cut surface 45° right	115 / 100 / 120x100
Cut surface 45° left	115 / 100 / 120x100
Cut surface 60° right	115 / 90 / 90x90

We would be happy to advise you on the machine and the extensive range of accessories by telephone.
In addition, we can possibly arrange a desired on-site appointment by arrangement!
