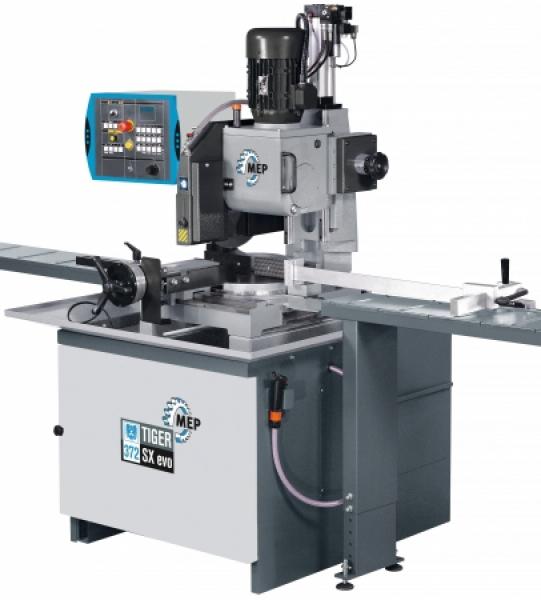

Product highlights Zimmer MEP TIGER 372 SX evo vertical circular saw
Electropneumatic - Semi-automatic vertical circular saw with microprocessor control for mitre cuts from 60° left to 45° right.
- Saw head glides on recirculating ball bearing linear double guides
- Three-stage gearbox
- infinitely variable speeds 15-150 rpm
- Vise opening 190 mm
- Stroke path of the saw head can be programmed directly from the control panel, for adaptation to the cutting material
- Pneumatic vertical vice
- Saw blade HSS DMO 5 Æ 370x32x3 for solid and profile material
- Vise with counter clamping device for double workpiece clamping
- Base frame with removable coolant tray
- Chip removal brush
- Length stop for cuts of equal length
- Material support arm, simultaneously connection possibility for roller conveyor / loading side
- The machine is designed for lifting truck transport
- incl. tools and operating instructions
- Switchboard
- marked cable connections
- Control lamp for operational readiness
- Safety main switch
- LED check Display on the control console for checking the machine functions
- Emergency stop button
- Speed changeover switch
- Thermal magnetic protection
- Undervoltage release
- Switch handle Protection class IP 55
- Low voltage system 24 Volt
- Electrical coolant device for lubrication and cooling of the saw blade (attachment of a micro-spray device possible)
- Motor 5,5 kW - 400 Volt
Technical data Zimmer MEP TIGER 372 SX evo vertical circular saw
Engine power |
5,5 kW |
Bank opening |
190 mm |
Tape measures |
370x32x3 |
Weight |
600 kg |
Speed |
15 - 90 1/min. |
Cutting surface 0° |
120 / 110 / 180x100 |
Cut surface 45° right |
115 / 100 / 120x100 |
Cut surface 45° left |
115 / 100 / 100x100 |
Cut surface 60° right |
115 / 90 / 90x90 |
We would be happy to advise you on the machine and the extensive range of accessories by telephone.
In addition, we can possibly arrange a desired on-site appointment by arrangement!
