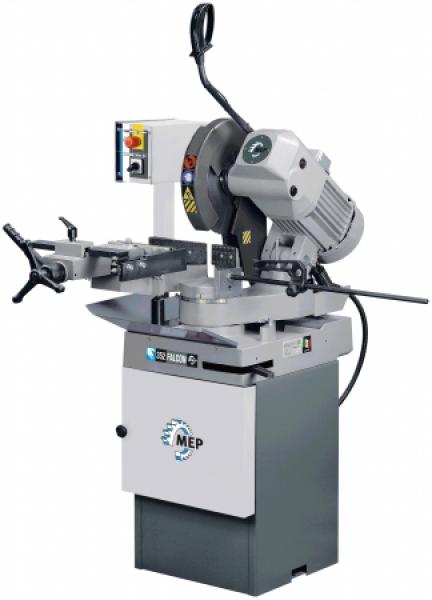

Product Highlights Zimmer MEP FALCON 352 chop saw
Manual crosscut saw for mitre cuts from 45° right to 45° left, with high sawing capacity.
Manual high-performance crosscut saw for the use of HSS saw blades. Mitre left/right up to 45°. The FALCON 352, also available with steel base (accessory), is supplied in 400 V three-phase current, with two speeds. Made of robust cast iron, practical and safe for every cut. FALCON 352 is available as a workbench version or on a stand (accessory). The machine is equipped with a two-speed three-phase motor. On request the machine can be supplied with pneumatic vice. FALCON 352 MA, when the head is lowered, the vice closes automatically This version is always supplied with a stand.
Basic equipment:
- externally adjustable clutch
- Blocking device with vice
- Slides on prismatic guide with adjustable bar
- Fixed vice clamps with axial adjustment for clamping the workpiece in the immediate vicinity of the cutting line.
- Adjustable fixing of the deburrer, made entirely of steel.
- Electric 48 V coolant pump to cool and lubricate the saw blade. Double spring for the return of the load platform.
- The machine can be lifted.
- Endless worm shaft mounted on pair of bearings.
- Saw blade holding shaft mounted on eccentric ram
- 2 speeds 30 and 60 rpm.
- vice opening 130 mm
- Machine is supplied without saw blade.
Electrical equipment:
- Electrical control panel
- marked cable connections
- Safety main switch provided for padlock
- Emergency stop device
- Phase failure protection
- Speed changeover switch
- Thermal magnetic protection
- Undervoltage release
- Motor with protection class IP 54
- Low voltage system 24 Volt
- Electric coolant pump 48 V
- Motor 1,1/2,2 kW - 400 Volt
Technical data Zimmer MEP FALCON 352 crosscut saw
| Engine power |
1,1/2,2 kW |
| Bank opening |
130 mm |
| Tape measures |
350x32x2,5 |
| Weight |
220 Kg |
| Speed |
30/60 1/min. |
| Cutting surface 0° |
115 / 100 / 130x80 |
| Cut surface 45° right |
100 / 85 / 90x80 |
| Cut surface 45° left |
75 / 75 / 90x65 |
