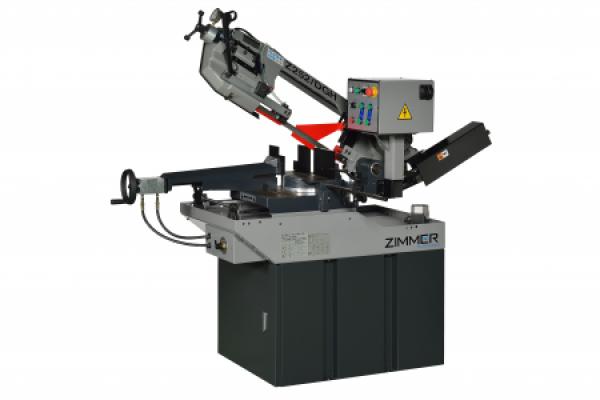

Product highlights Zimmer LYNX Z252/DGH metal band saw
The ZIMMER LYNX Z252/DGH is a hydraulic semi-automatic band saw for metal construction The double mitre machine can swivel up to 60° to the left and 45° to the right The machine has a fast approach button (rapid traverse to the material).
The Z252/DGH has the following features:
- The feed rate is infinitely adjustable via a hydraulic throttle valve.
- The saw blade can be changed without tools using quick-change fasteners.
- Hydraulic unit, emulsion pump, control panel, base frame, saw blade, 400 V 16 A plug.
- The machine is delivered fully assembled and ready for immediate use.
- Footprint: 1,680 x 750 x 1,800 mm
- Working height: 890 mm
Technical data Zimmer LYNX Z252/DGH metal band saw
|
Title
|
ZIMMER LYNX Z252/DGH
|
|
Item number
|
Z252/DGH
|
|
Engine power
|
1,1 kW 50Hz/400V
|
|
Bank opening
|
|
|
Belt dimensions
|
2725 x 27 x 0,9 mm
|
|
Weight
|
400 Kg
|
|
speed
|
36 + 72 m/min.
|
|
Cutting surface 0°
|
240 / 240 x 240 / 165 x 310
|
|
Cutting surface 45° right
|
195 / 185 x 195 / 130 x 190
|
|
Cut surface 45° left
|
170 / 145 x 145 / 130 x 190
|
|
Cutting surface 60° right
|
|
|
Cutting surface 60° left
|
120 / 85 x 85 / 85 x 120
|
