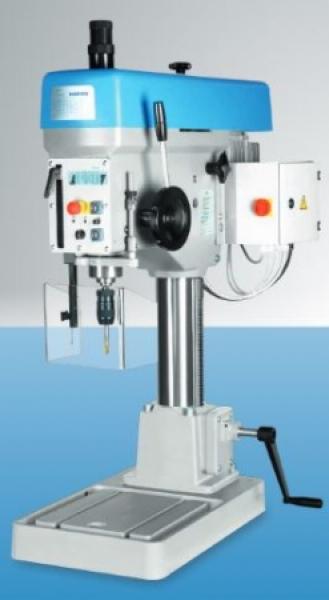

Zimmer BT 30 GL Thread Cutting Machine

Product Highlights Zimmer BT 30 GL Thread Cutting Machine​

High-performance threading machine with lead screw and optimum safety device against tool breakage. Programme for single or continuous cycle. Electronically controlled motor braking for single cycle. Easy lead screw change by quick coupling.
*Available as table or column machine.

• Manufacture of gauging threads M5 - M30
• Series production
• Reliable and smooth running
• Standard and special threads

Technical data Zimmer BT 30 GL thread cutting machine​

• Thread cutting capacity M 5 - M 30
• Thread per hour 800
• Normal drilling capacity 35 mm
• Spindle MK 4
• Thread depth 90 mm
• Drilling depth 150 mm
• Throat 280 mm
• Spindle/table 220 to 600 mm
• Table surface 420 x 390 mm
• Column diameter 120 mm
• Total height 1,250 mm
• Weight 270 kg
• Special motor 1.2 kW
• 5 spindle speeds either 80 - 440 rpm. or 160 - 880 rpm.
