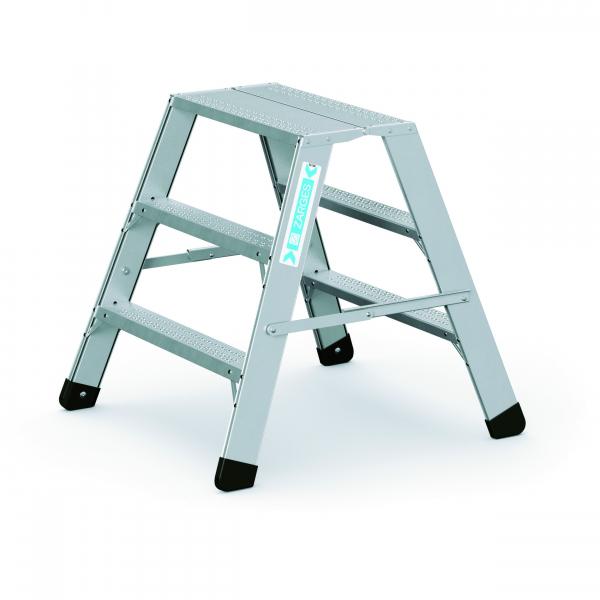

Product details Zarges work platform Seventec RC BP
The lightweight and comfortable platform with profiled steps and platform for outdoor use for quick and flexible use.

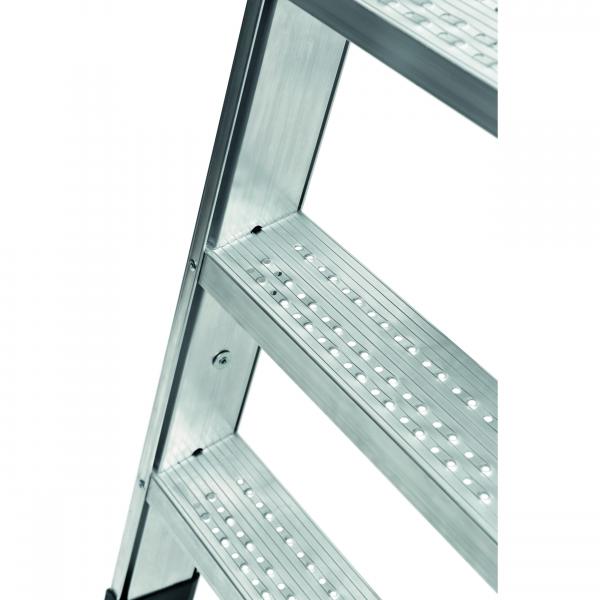

- 85 mm deep steps with perforations for draining liquids and profiling for safe standing.
- Platform size approx. 600 x 300 mm.
- Reflective strips on the stiles for better visibility in poor conditions.
- Rigid connection on both sides.
- Extra wide steps and comfortable tread surface.
- Accessible from both sides.

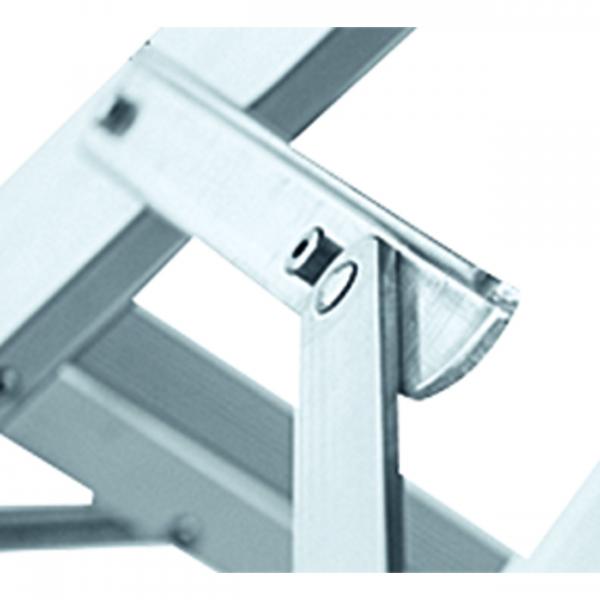

- Maximum stability and torsional rigidity thanks to platform with integrated hinge connection.
- 7-point step-stile connection with support bar in the centre of the step.
- Complies with the EN 14 183 standard.
Product features Zarges Seventec RC BP work platform
- Load: max. 150 kg
- Coating: natural
- Guarantee: 10 years
- Material: Aluminium
- Standards: EN 14183
- Platform width: 600 mm
- Platform length: 300 mm
- Rung/step-stile connection: riveted
- Vertical rung/step spacing: 218 mm
- Rung/step type: RC step
- Step depth: 85 mm
All variants Zarges work platform Seventec RC BP
| Order no. |
Working height |
Weight |
Platform height |
Number of steps |
Number of steps |
Transport dimensions |
Lower, outer width |
| 40392 |
2,49 m |
5,2 kg |
0,49 m |
2 |
2 × 2 |
610 mm × 700 mm × 290 mm |
0,7 m |
| 40393 |
2,74 m |
7,3 kg |
0,74 m |
3 |
2 × 3 |
860 mm × 750 mm × 290 mm |
0,75 m |
| 40394 |
2,99 m |
10,2 kg |
0,99 m |
4 |
2 × 4 |
1.110 mm × 800 mm × 290 mm |
0,8 m |
