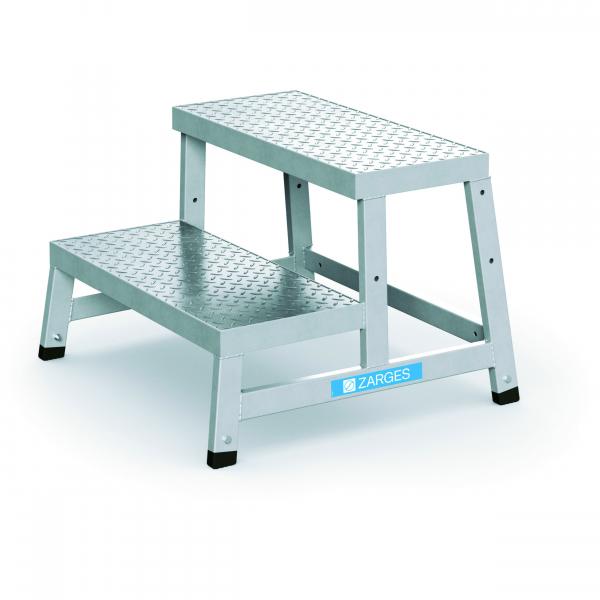

Zarges Work platform AMA P

Modules, single:

from 150,90 EUR

Product details Zarges work platform AMA P

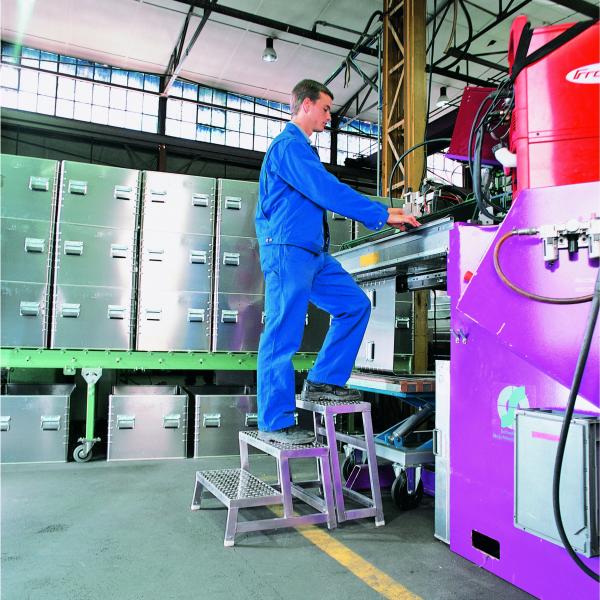

The modular solution for flexible or stationary use: from an extendable step to a complete work platform at various heights.

Modular design for configurations that can be changed and extended at any time - whether mobile or as a stationary catwalk.
Low dead weight for fast and convenient handling.
Extremely robust, torsion-resistant, corrosion-resistant overall light metal construction.
Comfortable and safe steps (555 x 250 mm) made of aluminium chequer plate.
Suitable for mobile use as a two-step basic module with up to three add-on steps.
Wide range of accessories for stationary and mobile use.
Extension modules in four different heights.
Complies with the EN 14 183 standard.

Order no.	Working height	Weight	Modules, single	Module combination	Platform height	Transport dimensions	Total platform depth	max. total weight
40261	2,2 m	2,9 kg	Module A	A	0,2 m	580 mm × 290 mm × 200 mm	0,3 m	2,9 kg
40260	2,4 m	4,8 kg	Module B	B	0,4 m	620 mm × 550 mm × 400 mm	0,55 m	4,8 kg
40262	2,4 m	3,9 kg	Module C	B + C	0,4 m	610 mm × 280 mm × 380 mm	0,8 m	8,7 kg
40263	2,6 m	4,4 kg	Module D	B + D	0,6 m	630 mm × 290 mm × 590 mm	0,8 m	9,2 kg
40264	2,8 m	4,8 kg	Module E	B + D + E	0,8 m	660 mm × 290 mm × 790 mm	1,05 m	14 kg
40265	2,99 m	5,5 kg	Module F	B + D + E + F	0,99 m	690 mm × 290 mm × 980 mm	1,3 m	19,5 kg
