Zarges Einzügige Steigleiter-Anlagen, bis 10 m Steighöhe, Stahl verzinkt

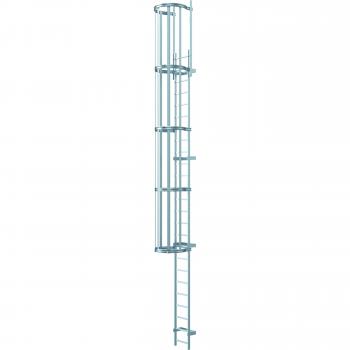

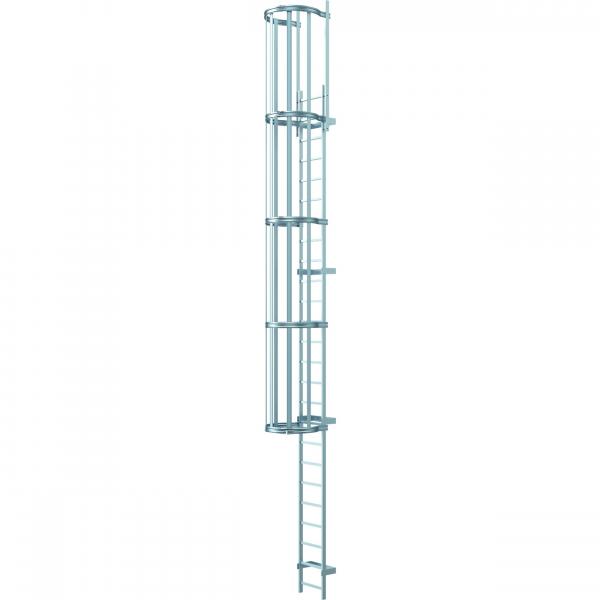

Product details Zarges single-pull vertical ladder systems, up to 10 m climbing height, galvanised steel

Stationary access to buildings and machines up to 10 m high, can also be used and approved as an escape route.

• For fixed installation, on buildings either for maintenance in accordance with DIN 18 799-1, or as an emergency ladder system in accordance with DIN 14 094-1, or as a machine access in accordance with DIN EN ISO 14 122-4.

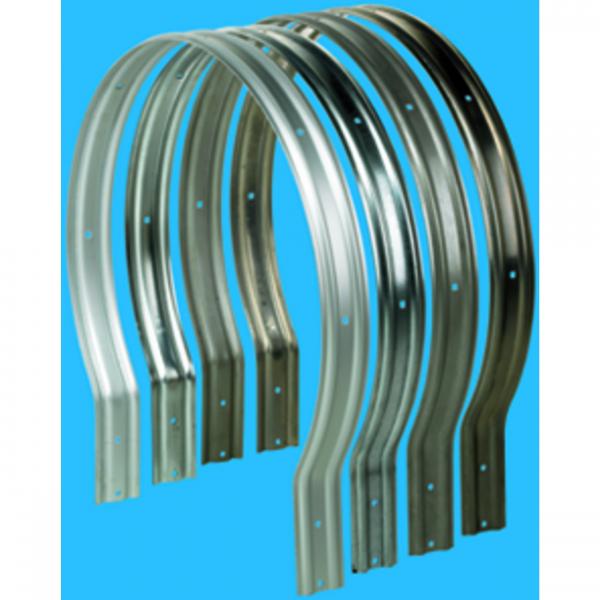

• Safety cage as a safety system, can be used for any standard.

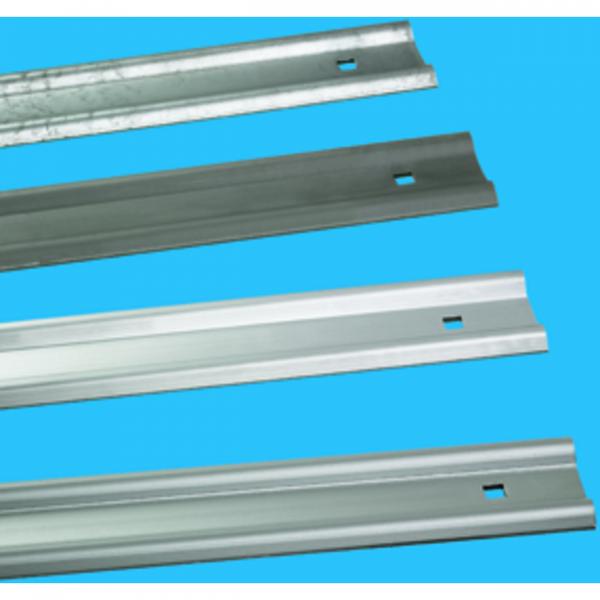

• Climbing protection rail as a safety system in accordance with DIN EN 353-1, DIN 18 799-1 and DIN EN ISO 14 122-4, can also be used as a single ladder for climbing heights of more than 10 metres.
• Ladder width: 520 mm.
• Wall brackets available with various wall spacings up to 600 mm.
• The maximum distance between the wall brackets is 2.00 m. However, each ladder section must be fitted with at least 2 wall brackets.
• Safety barriers, access guardrails and platforms can be selected according to requirements.
• We manufacture fixed ladder designs that deviate from the standard range on request.
• Dowels and screws for wall mounting are not included in the scope of delivery.
• The following single-track system prices are calculated as follows: U-shaped wall bracket, 200 mm rigid, straight exit rails on both sides, incl. safety cage in accordance with DIN 18 799-1 Please use our planning system for fixed ladders for other requirements.

Product features Zarges single-pull vertical ladder systems, up to 10 m climbing height, galvanised steel

• Guarantee: 10 years
• Material: Galvanised steel

All variants Zarges single-pull vertical ladder systems, up to 10 m climbing height, galvanised steel
