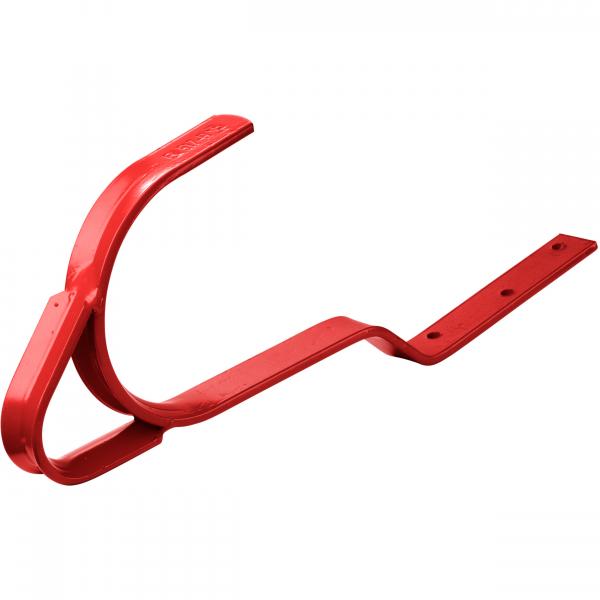

Product details Zarges safety roof hooks according to DIN EN 517
At least two safety roof hooks in a staggered arrangement are required for fastening. For ladders up to 4.20 m in length, two load-bearing safety roof hooks are required.
For each additional ladder section with a length of 2.00 m or 2.80 m, one additional hook is required; with a length of 4.20 m, two additional hooks are required.
Load-bearing safety roof hooks must be attached to the centre of the rafters. Smallest rafter circumference: 60 x 80 mm.
Warranty: Statutory warranty
All variants Zarges safety roof hooks according to DIN EN 517
Order no.
Execution
Colour
Weight
Material
Transport dimensions
40969
for pantiles and interlocking tiles
Steel, galvanised
1,2 kg
Steel, galvanised
450 mm × 210 mm × 30 mm
40490
for pantiles and interlocking tiles
Copper brown
1,1 kg
Steel, powder-coated
430 mm × 200 mm × 30 mm
40970
for pantiles and interlocking tiles
Brick red
1,2 kg
Steel, powder-coated
450 mm × 210 mm × 30 mm
40967
for pantiles and interlocking tiles
Brown
1,2 kg
Steel, powder-coated
450 mm × 210 mm × 30 mm
41399
for pantiles and interlocking tiles
Anthracite grey
1,2 kg
Steel, powder-coated
450 mm × 200 mm × 30 mm
41386
for beaver tiles
Steel, galvanised
1 kg
Steel, galvanised
430 mm × 190 mm × 30 mm
40492
for beaver tiles
Copper brown
1,2 kg
Steel, powder-coated
430 mm × 200 mm × 30 mm
41387
for beaver tiles
Brick red
1 kg
Steel, powder-coated
420 mm × 200 mm × 30 mm
41388
for beaver tiles
Brown
1 kg
Steel, powder-coated
430 mm × 190 mm × 30 mm
41389
for beaver tiles
Anthracite grey
1 kg
Steel, powder-coated
430 mm × 190 mm × 30 mm
