Zarges Mitraset Racklite 19" enclosure
NEW
Product details Zarges Mitraset Racklite 19" enclosure
Carrying case for holding electronic equipment in 19" grid.
- For accommodating electronic equipment in 19" grid in accordance with VG 95446.
- Variable versions in different nominal depths and height units.
- Extensive special equipment for numerous applications.
- Elastic stacking elements at enclosure and ceiling corners.
- Protection class IP 65 to DIN EN 60529 and IEC 34-5/529 due to welded enclosure and cover with all-round seal.
- Up to 15% weight saving compared to Mitraset Classic.

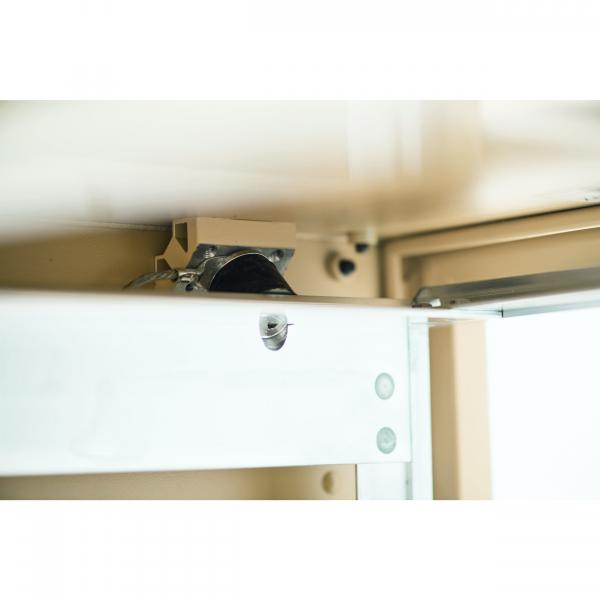

- The swinging frame is connected to the enclosure with 8 rubber dampers and 2 earth straps.
- Equal nominal depths are stackable.
- Shielding attenuation according to MIL-STD-285
- Fitted with hinged latches with anti-spring open feature.
- ZARGES Comfort handles for ergonomic handling and loads up to 50 kg.
- Tightly welded design made of high-strength aluminium sheets and profiles.
Product features Zarges Mitraset Racklite 19" enclosure
- External dimensions L x W x H: 468 mm × 591 mm × 627.5 mm
- Installation height: 11 U/U
- Weight: 12 kg
- Nominal depth: 350 mm
All variants Zarges Mitraset Racklite 19" enclosure
Order no. | Outer dimension L x W x H | Installation height | Weight | Nominal depth |
---|---|---|---|---|
45893 | 468 mm × 591 mm × 271,5 mm | 3 HE/U | 9,1 kg | 350 mm |
45894 | 468 mm × 591 mm × 316 mm | 4 HE/U | 9,7 kg | 350 mm |
45895 | 468 mm × 591 mm × 360,5 mm | 5 HE/U | 10,1 kg | 350 mm |
45896 | 468 mm × 591 mm × 405 mm | 6 HE/U | 10,4 kg | 350 mm |
45897 | 468 mm × 591 mm × 449,5 mm | 7 HE/U | 10,7 kg | 350 mm |
45898 | 468 mm × 591 mm × 494 mm | 8 HE/U | 11 kg | 350 mm |
45899 | 468 mm × 591 mm × 538,5 mm | 9 HE/U | 11,4 kg | 350 mm |
45900 | 468 mm × 591 mm × 583 mm | 10 HE/U | 11,7 kg | 350 mm |
45901 | 468 mm × 591 mm × 627,5 mm | 11 HE/U | 12 kg | 350 mm |
45902 | 468 mm × 591 mm × 672 mm | 12 HE/U | 12,4 kg | 350 mm |
45903 | 598 mm × 591 mm × 271,5 mm | 3 HE/U | 10,5 kg | 480 mm |
45904 | 598 mm × 591 mm × 316 mm | 4 HE/U | 11,2 kg | 480 mm |
45905 | 598 mm × 591 mm × 360,5 mm | 5 HE/U | 11,6 kg | 480 mm |
45906 | 598 mm × 591 mm × 405 mm | 6 HE/U | 11,9 kg | 480 mm |
45907 | 598 mm × 591 mm × 449,5 mm | 7 HE/U | 12,3 kg | 480 mm |
45908 | 598 mm × 591 mm × 494 mm | 8 HE/U | 12,7 kg | 480 mm |
45909 | 598 mm × 591 mm × 538,5 mm | 9 HE/U | 13,1 kg | 480 mm |
45910 | 598 mm × 591 mm × 583 mm | 10 HE/U | 13,4 kg | 480 mm |
45911 | 598 mm × 591 mm × 627,5 mm | 11 HE/U | 13,8 kg | 480 mm |
45912 | 598 mm × 591 mm × 672 mm | 12 HE/U | 13,8 kg | 480 mm |
45913 | 728 mm × 591 mm × 271,5 mm | 3 HE/U | 11,8 kg | 610 mm |
45914 | 728 mm × 591 mm × 316 mm | 4 HE/U | 12,5 kg | 610 mm |
45915 | 728 mm × 591 mm × 360,5 mm | 5 HE/U | 12,9 kg | 610 mm |
45916 | 728 mm × 591 mm × 405 mm | 6 HE/U | 13,3 kg | 610 mm |
45917 | 728 mm × 591 mm × 449,5 mm | 7 HE/U | 13,7 kg | 610 mm |
45918 | 728 mm × 591 mm × 494 mm | 8 HE/U | 14,2 kg | 610 mm |
45919 | 728 mm × 591 mm × 538,5 mm | 9 HE/U | 14,6 kg | 610 mm |
45920 | 728 mm × 591 mm × 583 mm | 10 HE/U | 15 kg | 610 mm |
45921 | 728 mm × 591 mm × 627 mm | 11 HE/U | 15,4 kg | 610 mm |
45922 | 728 mm × 591 mm × 672 mm | 12 HE/U | 15,8 kg | 610 mm |
45923 | 880 mm × 591 mm × 271,5 mm | 3 HE/U | 13,3 kg | 762 mm |
45924 | 880 mm × 591 mm × 316 mm | 4 HE/U | 14 kg | 762 mm |
45925 | 880 mm × 591 mm × 360,5 mm | 5 HE/U | 14,5 kg | 762 mm |
45926 | 880 mm × 591 mm × 405 mm | 6 HE/U | 15 kg | 762 mm |
45927 | 880 mm × 591 mm × 449,5 mm | 7 HE/U | 15,4 kg | 762 mm |
45928 | 880 mm × 591 mm × 494 mm | 8 HE/U | 15,9 kg | 762 mm |
45929 | 880 mm × 591 mm × 538,5 mm | 9 HE/U | 16,4 kg | 762 mm |
45930 | 880 mm × 591 mm × 583 mm | 10 HE/U | 16,8 kg | 762 mm |
45931 | 880 mm × 591 mm × 627,5 mm | 11 HE/U | 17,3 kg | 762 mm |
45932 | 880 mm × 591 mm × 627 mm | 12 HE/U | 17,8 kg | 762 mm |
