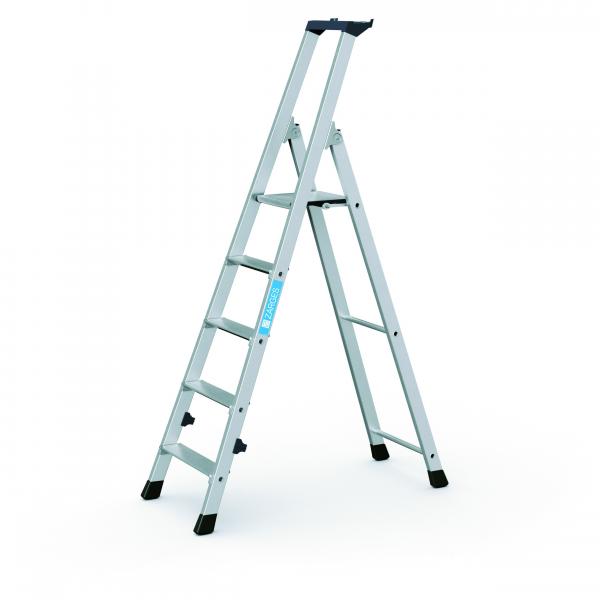

Product details Zarges ladder Nova S
The classic for safe standing and comfortable working with a practical storage tray and highly stable, patented step-stile connection.
- The classic for safe standing and comfortable working with practical storage tray and highly stable, patented step-stile connection.
- Large standing platform with non-slip ribbing.

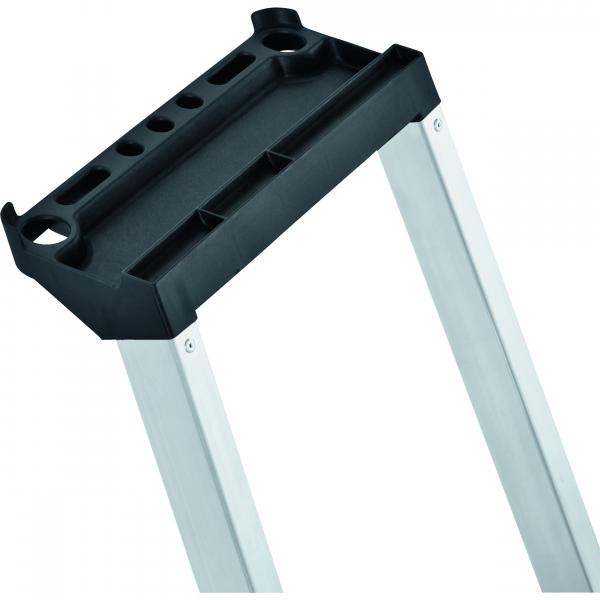

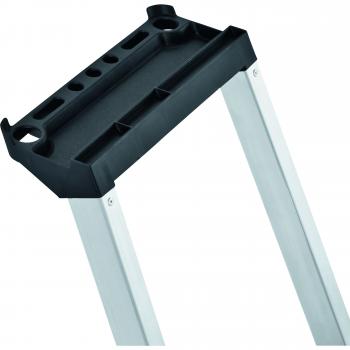

- Practical storage tray with plenty of space for tools and small parts.
- Steps with 80 mm deep treads.
- Spreader protection with high-strength pearl straps with sewn-in fastening tab, from 7 steps.

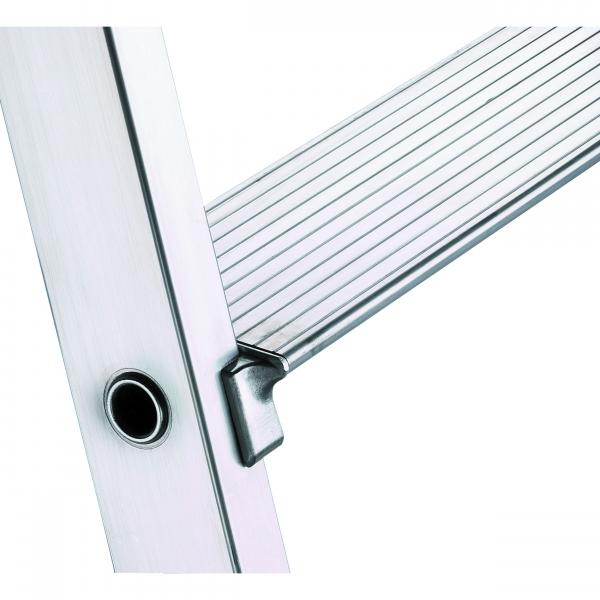

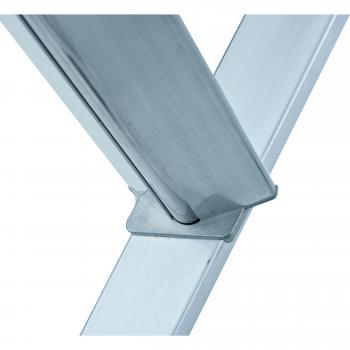

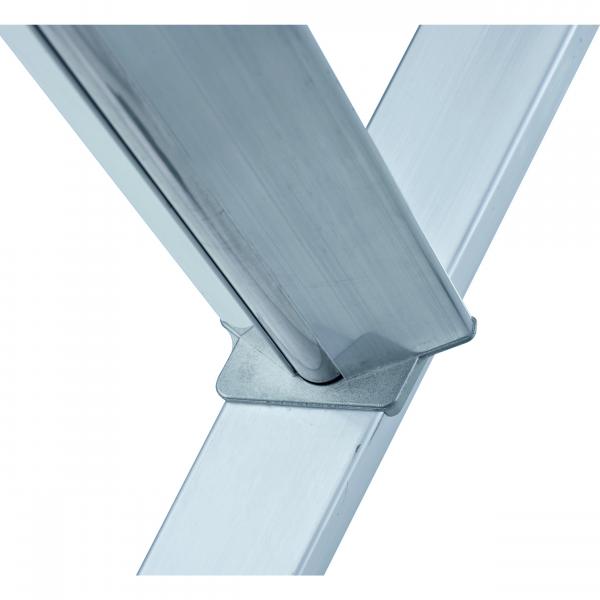

- Patented step construction: robust, stable, durable, flanged step-stile connection.
- Optimum platform stability thanks to extruded aluminium profile.
- Two bridge lifters made of extruded aluminium profile.
- Firm footing thanks to non-slip plastic shoes.
- Closed step profile and integrated guide tube.
- Complies with the EN 131 professional standard.
Product features Zarges Nova S ladder
- Storage tray: Plastic
- Load: max. 150 kg
- Coating: natural
- Guarantee: 10 years
- Rail height: 48 mm
- Rail height: 48 mm
- Stile height riser/support section: 48mm / 48mm
- Material: Aluminium
- Standards: EN 131 professional
- Platform width: 250 mm
- Platform length: 250 mm
- Rung/step-stile connection: flanged
- Vertical rung/step spacing: 216 mm
- Rung/step type: ribbed
- Step depth: 80 mm
All variants Zarges ladder Nova S
| Order no. |
Working height |
Weight |
Floor space |
Ladder length |
Platform height |
Splay lock |
Number of steps incl. platform |
Transport dimensions |
Vertical ladder height |
Lower, outer width |
| 42453 |
2,6 m |
4,8 kg |
0,69 m × 0,42 m |
1,34 m |
0,61 m |
|
3 |
1.350 mm × 420 mm × 120 mm |
1,22 m |
0,42 m |
| 42454 |
2,85 m |
5,8 kg |
0,84 m × 0,44 m |
1,57 m |
0,83 m |
|
4 |
1.580 mm × 440 mm × 120 mm |
1,43 m |
0,44 m |
| 42455 |
3,05 m |
6,9 kg |
0,99 m × 0,46 m |
1,8 m |
1,05 m |
|
5 |
1.810 mm × 470 mm × 120 mm |
1,65 m |
0,46 m |
| 42456 |
3,25 m |
8 kg |
1,14 m × 0,49 m |
2,03 m |
1,26 m |
|
6 |
2.060 mm × 490 mm × 120 mm |
1,86 m |
0,49 m |
| 42457 |
3,5 m |
9,1 kg |
1,28 m × 0,51 m |
2,26 m |
1,48 m |
Webbing |
7 |
2.270 mm × 520 mm × 120 mm |
2,08 m |
0,51 m |
| 42458 |
3,7 m |
10,2 kg |
1,44 m × 0,54 m |
2,49 m |
1,7 m |
Webbing |
8 |
2.500 mm × 540 mm × 120 mm |
2,29 m |
0,54 m |
