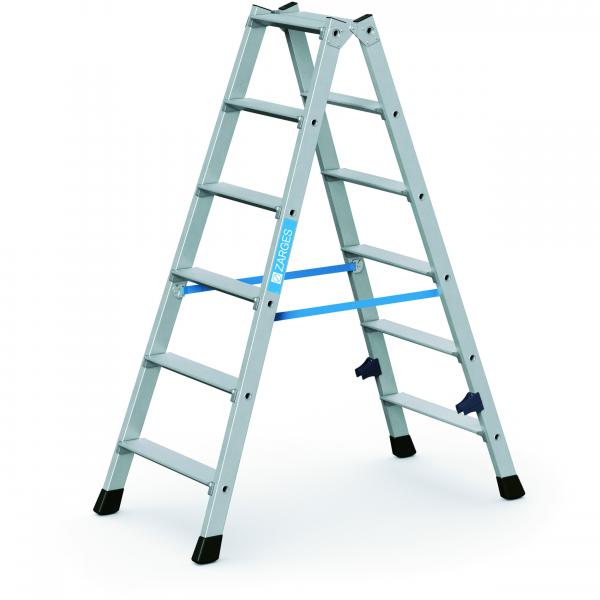

Product details Zarges ladder Nova B
Flexible access equipment for safe climbing and working at heights of up to 3.65 metres.
- Flexible access equipment for safe climbing and working at heights of up to 3.65 metres.

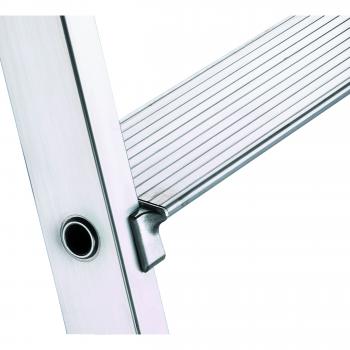

- Patented step design: robust, stable, durable, flanged step-stile connection.
- Steps with 80 mm deep treads.
- High-strength pearl straps with sewn-in fastening lugs to prevent splaying.
- Robust steel hinges.
- Firm footing thanks to non-slip plastic shoes.
- Closed step profile and integrated guide tube.
- Complies with the EN 131 professional standard.
Product features Zarges Nova B ladder
- Load: max. 150 kg
- Coating: natural
- Guarantee: 10 years
- Rail height: 48 mm
- Material: Aluminium
- Standards: EN 131 professional
- Spreader protection: webbing
- Rung/step-stile connection: flanged
- Vertical rung/step spacing: 216 mm
- Rung/step type: ribbed
- Step depth: 80 mm
All variants Zarges ladder Nova B
| Order no. |
Working height |
Weight |
Floor space |
Ladder length |
Number of steps |
Number of steps |
Transport dimensions |
Vertical ladder height |
Lower, outer width |
| 42463 |
2,1 m |
5,8 kg |
0,6 m × 0,44 m |
0,68 m |
3 |
2 × 3 |
680 mm × 440 mm × 140 mm |
0,64 m |
0,44 m |
| 42464 |
2,3 m |
8,1 kg |
0,74 m × 0,47 m |
0,91 m |
4 |
2 × 4 |
920 mm × 470 mm × 140 mm |
0,85 m |
0,47 m |
| 42465 |
2,55 m |
10,2 kg |
0,91 m × 0,49 m |
1,15 m |
5 |
2 × 5 |
1.150 mm × 490 mm × 140 mm |
1,07 m |
0,48 m |
| 42466 |
2,75 m |
12,4 kg |
1,1 m × 0,52 m |
1,37 m |
6 |
2 × 6 |
1.380 mm × 520 mm × 140 mm |
1,29 m |
0,52 m |
| 42467 |
3 m |
14,6 kg |
1,27 m × 0,54 m |
1,61 m |
7 |
2 × 7 |
1.610 mm × 540 mm × 140 mm |
1,5 m |
0,54 m |
| 42468 |
3,2 m |
16,9 kg |
1,43 m × 0,56 m |
1,84 m |
8 |
2 × 8 |
1.840 mm × 620 mm × 170 mm |
1,72 m |
0,56 m |
| 42470 |
3,65 m |
21,5 kg |
1,78 m × 0,61 m |
2,3 m |
10 |
2 × 10 |
2.300 mm × 610 mm × 140 mm |
2,15 m |
0,61 m |
