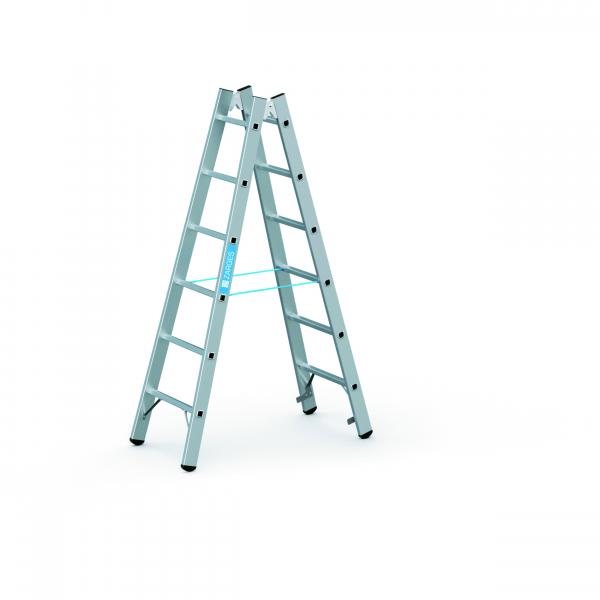

Product details Zarges Coni B ladder
For those who want to reach high: flexible access with up to 20 rungs for working heights of up to 6.70 metres.
- Sturdy light metal rungs (30 x 30 mm) with non-slip, ribbed tread surface.
- Robust, sturdy bolted steel hinges.
- Secured against splaying by two high-strength pearl straps, attached to the rung to prevent twisting.

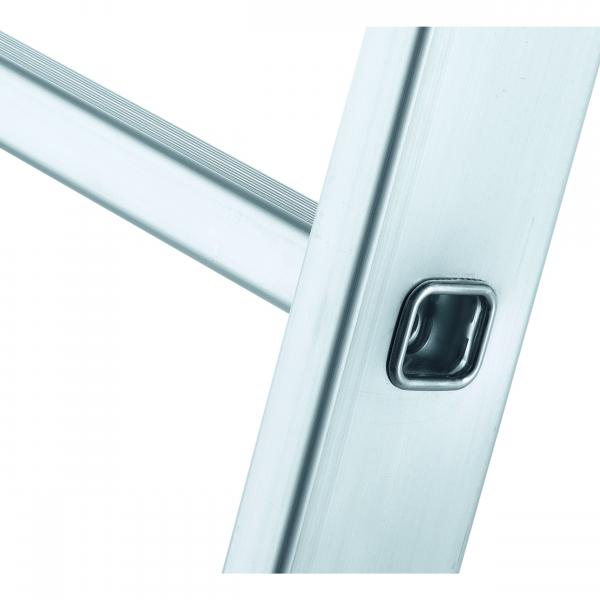

- Rung-stile connection with high-strength ZARGES quality flanging.
- Additional stabilisation through bracing on the bottom rung.
- Replaceable 2-component plastic shoes for non-slip standing and a firm fit in the stile.
- Complies with the EN 131 professional standard.
Product features Zarges Coni B ladder
- Load: max. 150 kg
- Coating: natural
- Guarantee: 10 years
- Material: Aluminium
- standards: EN 131 professional
- Spreader protection: webbing
- Rung/step-stile connection: flanged
- Vertical rung/step spacing: 265 mm
- Rung/step type: ribbed
- Step depth: 30 mm
All variants Zarges ladder Coni B
| Order no. |
Working height |
Weight |
Floor space |
Spar height |
Ladder length |
Number of rungs |
Number of rungs |
Transport dimensions |
Vertical ladder height |
Lower, outer width |
| 40274 |
2,5 m |
4,4 kg |
0,9 m × 0,47 m |
50 mm |
1,22 m |
4 |
2 × 4 |
1.220 mm × 470 mm × 140 mm |
1,2 m |
0,47 m |
| 40275 |
2,75 m |
5,8 kg |
1,07 m × 0,5 m |
58 mm |
1,58 m |
5 |
2 × 5 |
1.500 mm × 505 mm × 140 mm |
1,46 m |
0,5 m |
| 40311 |
3 m |
6,8 kg |
1,25 m × 0,53 m |
58 mm |
1,78 m |
6 |
2 × 6 |
1.810 mm × 533 mm × 155 mm |
1,73 m |
0,53 m |
| 40277 |
3,25 m |
7,3 kg |
1,41 m × 0,57 m |
58 mm |
2,06 m |
7 |
2 × 7 |
2.080 mm × 570 mm × 155 mm |
1,99 m |
0,57 m |
| 40312 |
3,55 m |
9 kg |
1,36 m × 0,59 m |
58 mm |
2,34 m |
8 |
2 × 8 |
2.363 mm × 593 mm × 155 mm |
2,3 m |
0,59 m |
| 40313 |
4,05 m |
11,1 kg |
1,65 m × 0,65 m |
58 mm |
2,9 m |
10 |
2 × 10 |
2.922 mm × 653 mm × 155 mm |
2,83 m |
0,65 m |
| 40314 |
4,6 m |
13,3 kg |
1,94 m × 0,71 m |
58 mm |
3,46 m |
12 |
2 × 12 |
3.481 mm × 713 mm × 155 mm |
3,37 m |
0,71 m |
| 40315 |
5,1 m |
17,2 kg |
2,23 m × 0,77 m |
62 mm |
4,02 m |
14 |
2 × 14 |
4.041 mm × 773 mm × 163 mm |
3,91 m |
0,77 m |
| 40316 |
5,65 m |
21,2 kg |
2,52 m × 0,83 m |
68 mm |
4,58 m |
16 |
2 × 16 |
4.600 mm × 833 mm × 183 mm |
4,45 m |
0,83 m |
| 40320 |
6,15 m |
25,6 kg |
2,83 m × 0,89 m |
73 mm |
5,14 m |
18 |
2 × 18 |
5.160 mm × 893 mm × 185 mm |
5 m |
0,89 m |
| 40317 |
6,7 m |
29,8 kg |
3,12 m × 0,95 m |
73 mm |
5,7 m |
20 |
2 × 20 |
5.720 mm × 953 mm × 185 mm |
5,54 m |
0,95 m |
