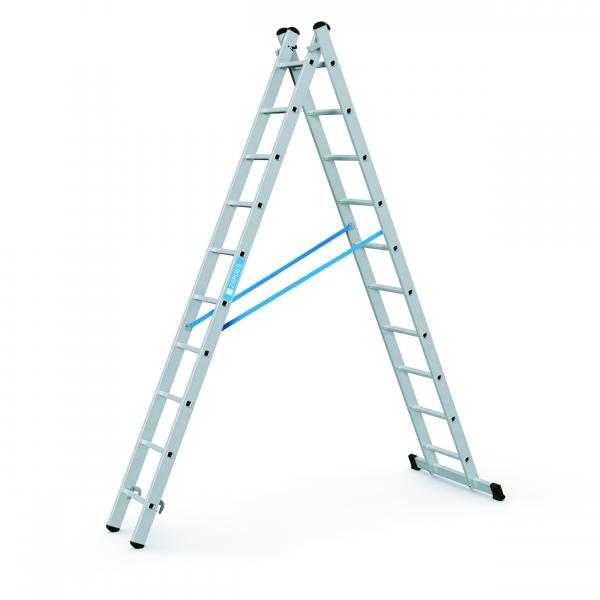

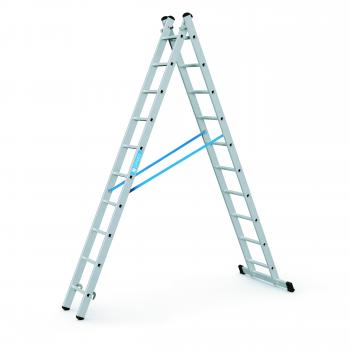

Product details Zarges Combimaster Plus X ladder
Two ladders in one: stepladder and extension ladder in combination for safe standing.

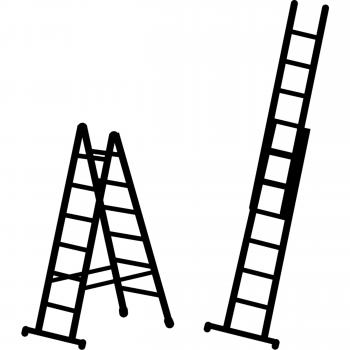

- Can be used as a 2-part extension ladder or as a ladder that can be accessed from both sides.
- Secured against spreading by high-strength nylon straps with sewn-in fixing lugs.
- Stiles made of extruded aluminium profiles for maximum stability.
- Replaceable plastic shoes for non-slip standing.

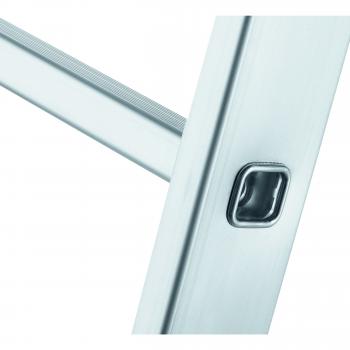

- Rung-stile connection with high-strength ZARGES quality flanging.
- Complies with the EN 131 professional standard.
Product features Zarges Combimaster Plus X ladder
- Load: max. 150 kg
- Coating: natural
- Guarantee: 10 years
- Material: Aluminium
- standards: EN 131 professional
- Rung/step-stile connection: flanged
- Vertical rung/step spacing: 265 mm
- Rung/step type: ribbed
- Step depth: 30 mm
All variants Zarges Combimaster Plus X ladder
| Order no. |
Working height |
Wide crossbar |
Weight |
Spar height |
Ladder length, extended |
Ladder length, retracted |
Number of rungs |
Number of rungs |
Transport dimensions |
Vertical height as stepladder |
| 42566 |
3,8 m |
0,8 m |
7,9 kg |
58 mm |
2,98 m |
1,86 m |
6 |
2 × 6 |
1.860 mm × 420 mm × 125 mm |
1,75 m |
| 42568 |
4,9 m |
0,8 m |
10,1 kg |
58 mm |
4,1 m |
2,42 m |
8 |
2 × 8 |
2.420 mm × 420 mm × 125 mm |
2,27 m |
| 42570 |
5,7 m |
0,9 m |
12,2 kg |
58 mm |
4,94 m |
2,98 m |
10 |
2 × 10 |
2.980 mm × 420 mm × 125 mm |
2,8 m |
| 42572 |
6,8 m |
1 m |
15,3 kg |
73 mm |
6,06 m |
3,54 m |
12 |
2 × 12 |
3.540 mm × 420 mm × 135 mm |
3,33 m |
| 42574 |
7,9 m |
1,1 m |
18,1 kg |
85 mm |
7,19 m |
4,1 m |
14 |
2 × 14 |
4.110 mm × 420 mm × 140 mm |
3,86 m |
| 42576 |
9 m |
1,2 m |
22 kg |
98 mm |
8,31 m |
4,67 m |
16 |
2 × 16 |
4.670 mm × 420 mm × 150 mm |
4,39 m |
