Product No.:
Z3032X7P400V
2-4 days 2-4 days (abroad may vary)
  • Spare parts supply
  • Top quality
  • Happy customers
  • Secure payment
  • Authorized dealers

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
420 kg per piece
2.765,90 EUR

19% VAT excl. Shipping costs

Ask about product
Description

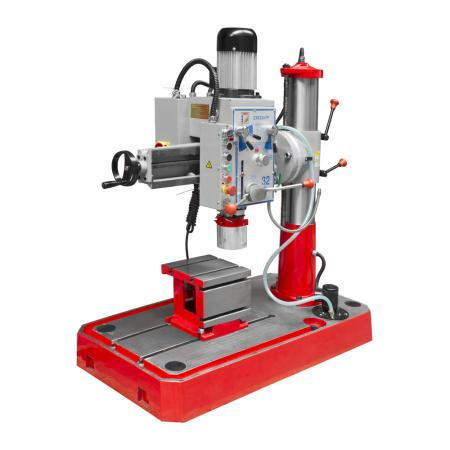

Product Highlights Z3032X7P400V Holzmann radial drill​

  • heavy duty radial drilling machine complete with cube table

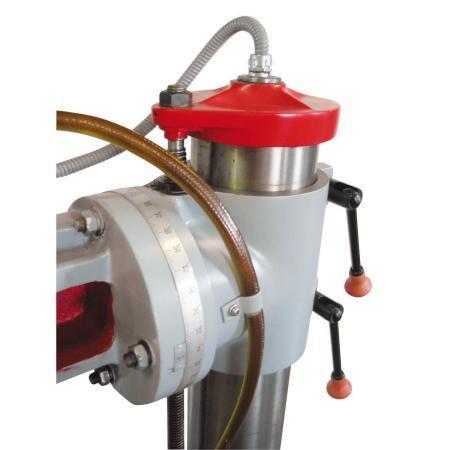

  • highest flexibility due to rotatable and height-adjustable drill head
  • Overhang easily adjustable via large hand wheel
  • Coolant pump as standard
  • disengageable automatic vertical feed with three different speeds
  • ideal for processing the heaviest and most unwieldy workpieces
  • thick-walled ground main column ensures high stability

Scope of delivery Z3032X7P400V Holzmann radial drilling machine​

  • Drill chuck 16mm,
  • Reduction MK3/2,
  • Drift wedge,
  • Dice table

Technical data Z3032X7P400V Holzmann radial drilling machine​

Motor data​
  • Motor power S6 in W: 1400
  • voltage: 400V
General dimensions​
  • Throat in mm: 300-700
Technical specification​
  • milling spindle speed in min-1: 100-1600
  • Drilling spindle holder: MK3 / MT3
  • max. drilling capacity in mm: Ø32
  • quill stroke in mm: 135
  • Column diameter in mm: 150
  • max. distance spindle-table in mm: 640
  • Gross weight in kg: 420
