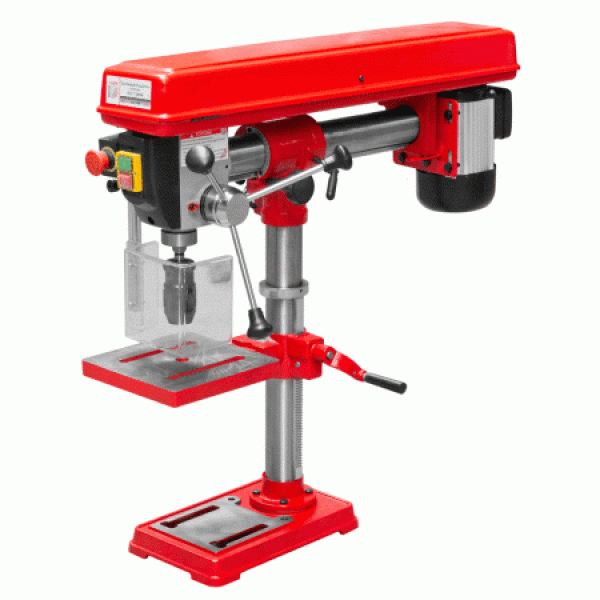

SB3116RMN230V Holzmann bench drill with radial adjustment
SB3116RMN230V Holzmann bench drill with radial adjustment
SB3116RMN230V Holzmann bench drill with radial adjustment

SB3116RMN230V Holzmann bench drill with radial adjustment

Product No.:
SB3116RMN230V
2-4 days 2-4 days (abroad may vary)
  • Spare parts supply
  • Top quality
  • Happy customers
  • Secure payment
  • Authorized dealers

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
44 kg per piece
336,90 EUR

19% VAT excl. Shipping costs

Ask about product
Description

Product Highlights SB3116RMN230V Holzmann bench drill with radial adjustment​

  • solid base plate for good stability
  • Aluminium motor according to IP54
  • bending resistant drill column with ground surface
  • rotary drilling table via toothed rack any
  • height adjustable
  • practical three-arm lever with drill depth scaling
  • fold-away quick release chuck cover made of plexiglass
  • Drill depth stop

Scope of delivery SB3116RMN230V Holzmann bench drill with radial adjustment​

  • Quick action chuck 3-16mm,
  • B16

Technical data SB3116RMN230V Holzmann bench drill with radial adjustment​

Motor data​
  • Motor power S1 in W: 600
  • Motor power S6 in W: 900
  • voltage: 230V
General dimensions
  • Projection in mm: 130-420
  • Table size in mm: 220x220
  • max. height in mm: 805
Technical specification​
  • Base plate in mm: 210x350
  • max. drilling capacity in mm: 16
  • Drilling spindle speed in min-1: (5) 500-2500
  • Drilling spindle holder: MK2 / MT2
  • quill stroke in mm: 80
  • distance spindle - base plate in mm: 470
  • max. distance spindle-table in mm: 355
  • Column diameter in mm: 60
  • Gross weight in kg: 44
