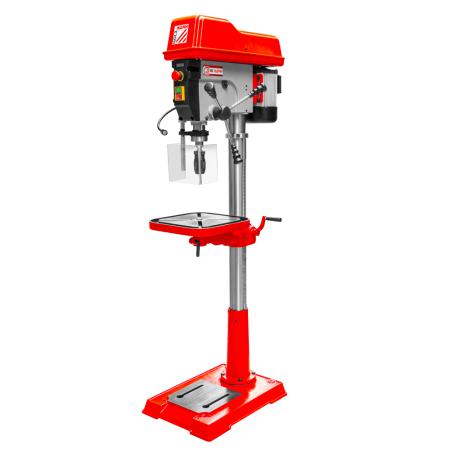

SB163VH230V Holzmann box column drill

Product Highlights SB163VH230V Holzmann box column drill

• variable speed setting with LCD display
• LED light
• solid base plate for good stability
• bending resistant drill column with ground surface
• inclinable drilling table (+/-45°) can be adjusted to any height via gear rack
• practical three-arm lever with drill depth scaling
• fold-away quick release chuck cover made of plexiglass
• Drill depth stop

Scope of delivery SB163VH230V Holzmann box column drill

• Quick action chuck 1-16mm,
• B16

Technical data SB163VH230V Holzmann box column drill​

• Motor power S1 in W: 1100
• voltage: 230V / 50Hz

• Projection in mm: 430
• Table size in mm: 356x356
• Installation dimensions in mm: 740x470x1710

• max. drilling capacity steel in mm: 16
• Drilling spindle holder: MK3/MT3
• Drilling spindle speed in min-1: 460-2100
• Column diameter in mm: 80
• spindle stroke in mm: 150
• Base plate in mm: 580x420
• Gross weight in kg: 98.50

• Sound power level in dB(A): 88.5
• Sound pressure level in dB(A): 73.1
