SB162VN230V Holzmann pillar drilling machine

Product Highlights SB162VN230V Holzmann pillar drilling machine​

• VARIO gearbox
• incl. drill centring laser and working light

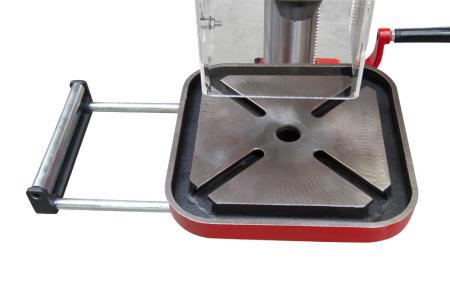

• extendable worktable
• variable speed with LCD display
• solid base plate for good stability
• Aluminium motor according to IP54
• bending resistant drill column with ground surface
• Rotating drilling table can be adjusted in any height via toothed rack
• practical three-arm lever with drill depth scaling
• fold-away quick release chuck cover made of plexiglass
• Drill depth stop

Scope of delivery SB162VN230V Holzmann pillar drilling machine​

• Quick action chuck 1-16mm,
• B16

Technical data SB162VN230V Holzmann pillar drilling machine

• voltage: 230V /50 Hz
• Speed in min-1: 390-2200
• Protection class: I
• Motor power S1 in W: 500

• Projection in mm: 150
• Table size in mm: 243x243
• Installation dimensions in mm: 310x570x910

• max. drilling capacity in mm: 16
• Drilling spindle holder: MK2/MT2
• Column diameter in mm: 60
• spindle stroke in mm: 90
• Base plate in mm: 413 x 246
• distance spindle - base plate in mm: 540
• Gross weight in kg: 40

• Sound power level in dB(A): 78
• Sound pressure level in dB(A): 59
