PullDown 160.120 G BOMAR metal band saw

Product No.:
78942
2-4 days 2-4 days (abroad may vary)
  • Spare parts supply
  • Top quality
  • Happy customers
  • Secure payment
  • Authorized dealers

Delivery: If you need the item very urgently, please ask in advance for the exact delivery time.

Weight:
38 kg per piece
1.785,00 EUR

19% VAT excl. Shipping costs

Ask about product
Description

Product Highlights PullDown 160.120 G BOMAR metal band saw​

Manual metal band saw
The large cutting range, is designed for use in workshops and construction sites. With this portable machine, cuts of 0° as well as mitre cuts stepless up to 60° are possible. The saw feed is manual by pulling the hand guide lever.

  • Standard equipment ELMAG PullDown 160.120 G BOMAR metal band saw​

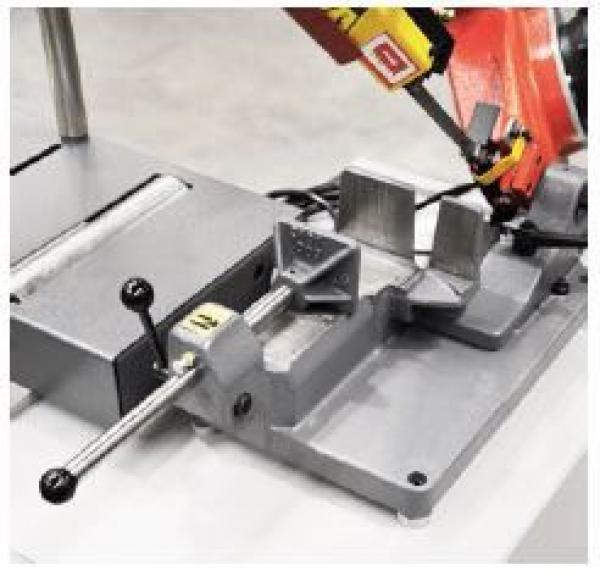

  • - Sturdy cast aluminium frame
    - Vise quick clamping device
    - start/stop function
    - Carbide saw blade guides
    - Band saw blade BI-Metal

Technical data ELMAG PullDown 160.120 G BOMAR metal band saw​

Cutting range max.
160x120 mm
Saw blade length
1,620 mm
Sawband height
13 mm
Saw blade thickness
0.65 mm
Cutting angle
0-60 °
Speed stages
2
cutting speed 1/2
37/70 m/min
Saw blade drive Motor power
370 W
Network connection
400/50-60 V/Hz
Inlet height
90 mm
Remaining piece length
20 mm
Length
810 mm
Width
530 mm
Height
450 mm
Weight
38 kg


Highest quality of ELMAG machines
Benefit from a 2-year warranty from ELMAG

Accessories for ELMAG machines on request
