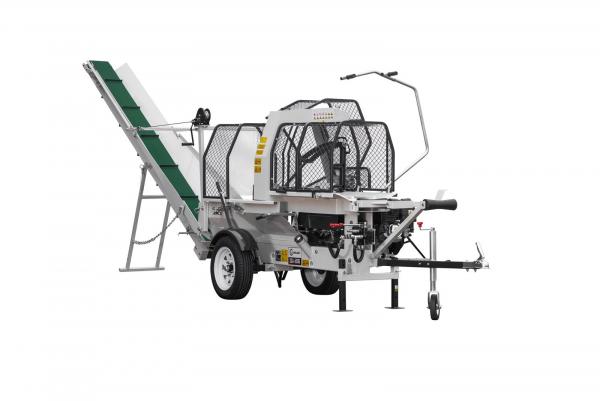

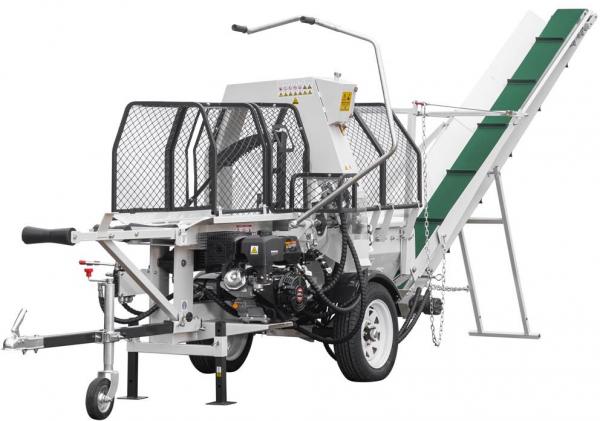

Lumag SSA-500G petrol engine sawmill

Technical facts Lumag SSA-500G petrol engine sawmill:

• Simple and easy operation.
• Processing of logs by sawing and splitting in one pass

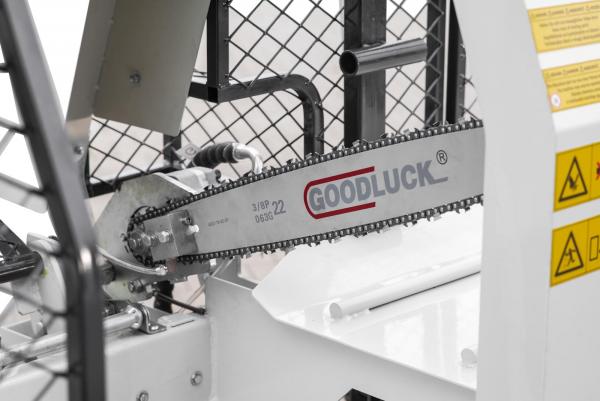

• The chain saw is equipped with a STIHL brand saw chain
• 5-8 m³ of wood/hour can be processed.

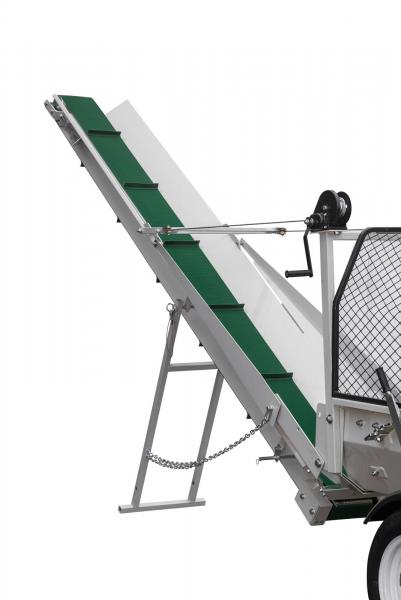

• Automatic removal of the material by means of a belt conveyor

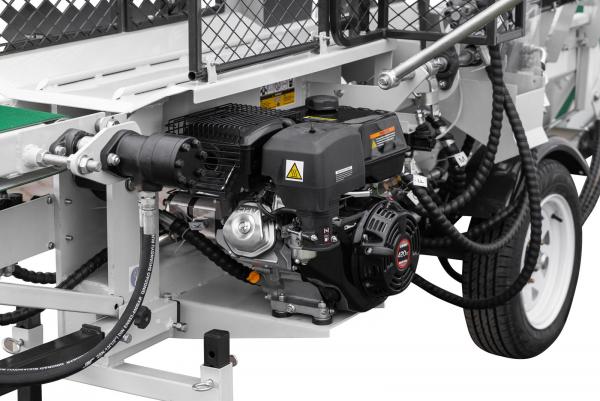

• Powerful 9.2 kW petrol engine for fast work even with larger logs up to 50 cm in diameter

Technical data Lumag saw blade machine with petrol engine SSA-500G:

• Engine / Drive Petrol engine 420cm³, 9,2kW
• Hydraulic motor chain saw max. 4.500 rpm
• Hydraulic motor conveyor belt max. 284 rpm
• at 110 bar, 285 Nm
• Chainsaw Hydraulic
• Chain (STIHL) C3621 000 0077/0.375/1,5mm
• Bar 55cm
• Splitting length max. cm 50
• Splitting diameter max. cm 10-50
• Working speed cm/s 5
• Return speed cm/s 4
• Splitting force t 20
• Conveyor belt (L/W/H) mm 3200 x 200 x 2200
• Conveyor speed m/s 0.5
• Weight incl. conveyor belt kg 640 (530kg + 110kg)
• Packaging dimensions (L/W/H) Automatic saw blade machine mm 2000 x 1000 x 1200
• Packaging dimensions (L/W/H) Conveyor belt mm 1850 x 450 x 570
