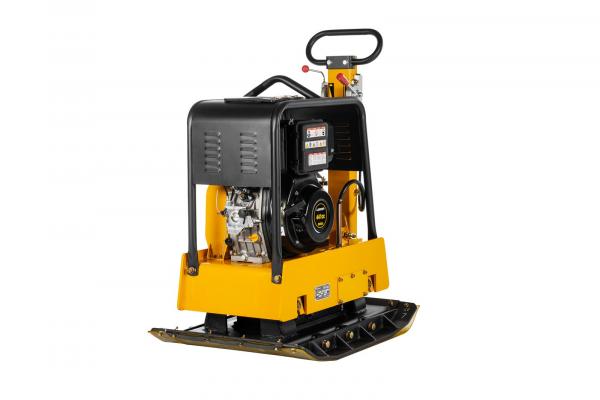

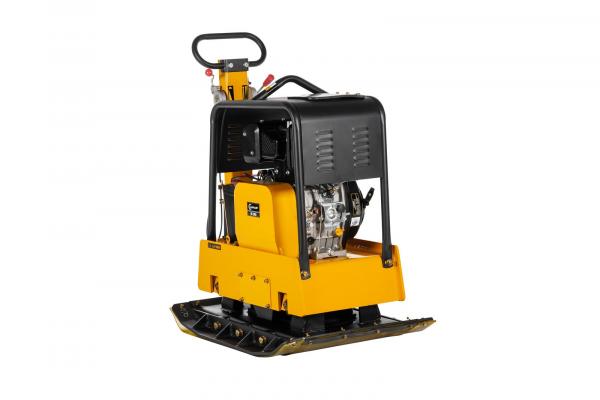

Lumag reversible vibratory plate with E-Start RP-i38DE

Technical facts Lumag reversible vibratory plate with E-Start RP-i38DE:

• The RPi-38DE vibratory plate with forward and reverse motion is the ideal tool for subsoil consolidation, as well as for vibrating small to medium-sized areas. Especially applicable in gardening and landscaping, for the construction of walkways and terraces, for paving, foundation construction, trench and channel construction, as well as for the compaction of interlocking paving.

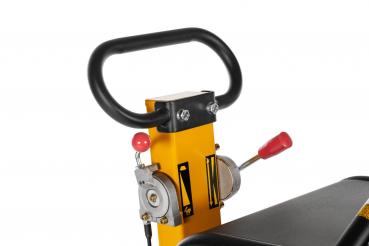

• Stepless regulation of movement in both directions.

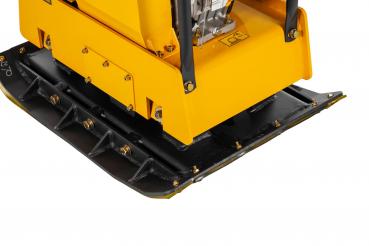

• Robust, durable cast iron base plate for particularly precise work.
• Diesel engine with E-start and EURO V emission standard.
• Equipped with V-belt protected on all sides,
• protective frame, rubber mat, transport chassis and extension.
• Rubber mat available as an option

Technical data Lumag reversible vibratory plate with E-Start RP-i38DE:

• Engine / Drive LC186FD diesel engine
• Engine output kW 6.8 at 3,600 rpm
• Displacement cm³ 441
• Fuel tank L 4.5
• Plate length mm 830
• Plate width mm 480
• Attachment plate Mm 830 x 100
• Frequency Hz 63
• Centrifugal force kN 38
• Area output m²/h approx. 416
• Max. Feed rate m/min up to 21
• Vibration shocks Vpm 3750
• Compaction depth cm 90
• Max. permissible inclination of the motor 20°.
• Sound power level LWA 108 dB(A)
• Operating weight kg 292
• Transport weight (Nto./Bto.) kg 298 / 314
• Packaging dimensions (L/W/H): (incl. pallet foot) mm 905 / 505 / 1130
• Packaging dimensions (L/W/H): mm 905 / 505 / 1030
• (cardboard box)
