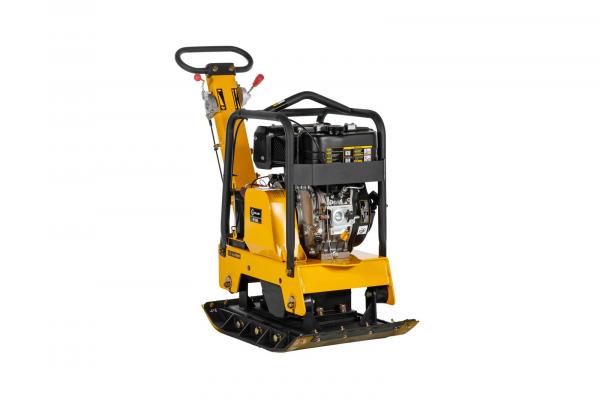

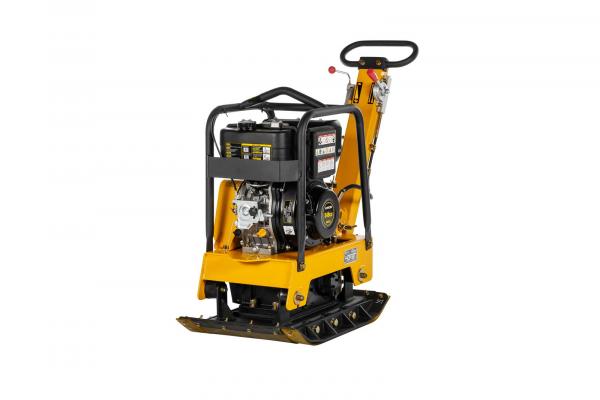

Lumag reversible vibratory plate with E-Start RP-i31DE

Technical facts Lumag reversible vibratory plate with E-Start RP-i31DE:

• The vibratory plate with forward and reverse motion is the ideal tool for subsoil consolidation, as well as for vibrating small to medium-sized areas. It can be used especially in gardening and landscaping, for the construction of walkways and terraces, for laying paving stones, in foundation construction, in trench and channel construction, and also for compacting interlocking paving stones.
• It is much easier to handle and more manoeuvrable than a vibratory plate that only moves forwards.
• Stepless regulation of the movement in both directions.

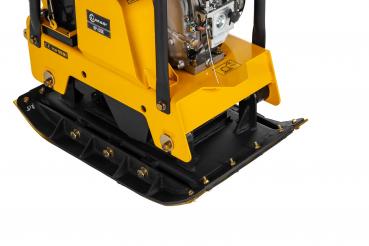

• Robust, durable cast-iron base plate for particularly precise work
• Diesel engine with E-start and EURO V emission standard
• Equipped with V-belt protected on all sides,

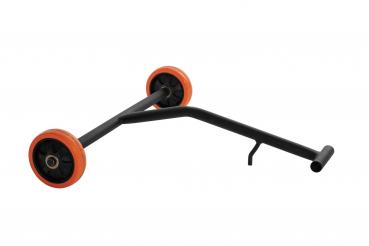

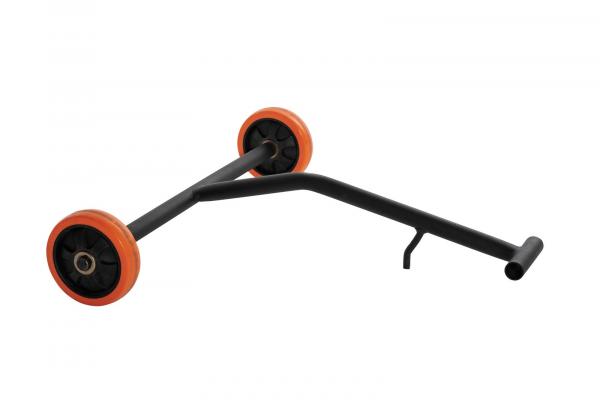

• Protective frame, rubber mat, transport undercarriage and extension
• Rubber mat available as an option

Technical data Lumag reversible vibratory plate with E-Start RP-i31DE:

• Engine / Drive LC178FD diesel engine
• Engine output kW 4.9 at 3,600 1/min
• Displacement cm³ 349
• Fuel tank L 3.5
• Plate length mm 700
• Plate width mm 360
• Attachment plate mm 700 x 100
• Frequency Hz 67
• Centrifugal force kN 30.5
• Area output m²/h approx. 450
• Max. Feed rate m/min up to 25
• Vibration shocks vpm 4810
• Compaction depth cm 50
• Max. permissible inclination of the motor 20°.
• Sound power level LWA 108 dB(A)
• Operating weight kg 199
• Packing dimensions (L/W/H): mm 810 / 425 / 1010
