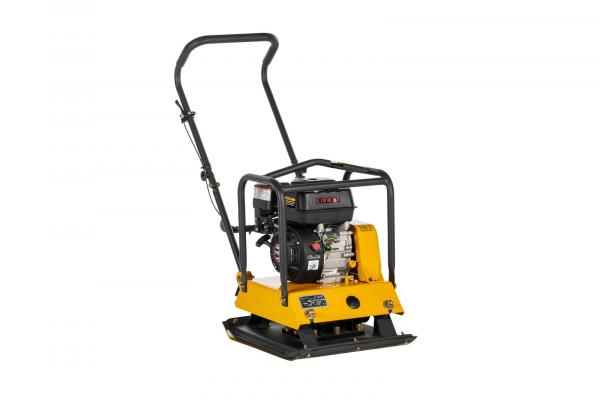

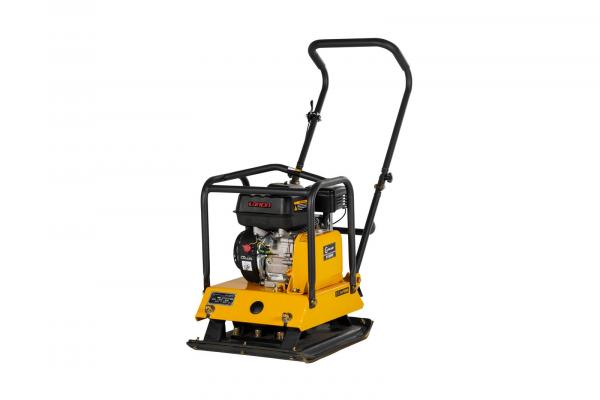

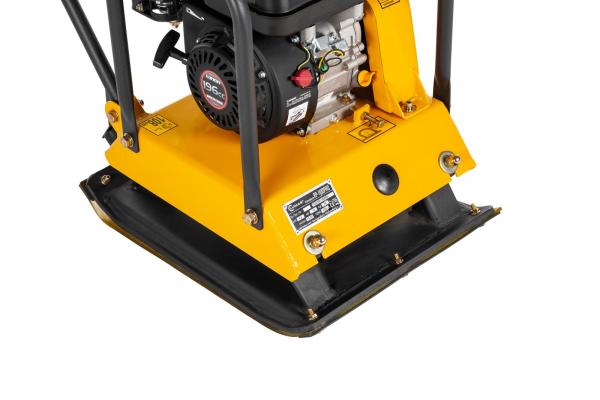

Lumag reversible vibratory plate RP-1100PRO

Technical facts Lumag reversible vibratory plate RP-1100PRO:

• The forward running vibratory plate is particularly suitable for paving work, repair work in path construction, gardening and landscaping.
• Foldable handle - compact size for transport and storage.
• Protective grille on exhaust, handle damped against vibrations.
• Equipped with V-belt protected on all sides,
• protective frame, rubber mat and

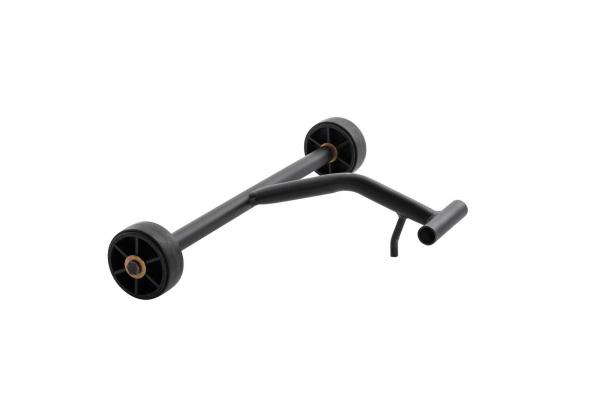

• Transport chassis

Technical data Lumag reversible vibratory plate RP-1100PRO:

• Engine / Drive 1-cylinder 4-stroke OHV engine for unleaded petrol
• Fuel tank L 3.6
• Engine power kW 4.1
• Plate length mm 570
• Plate width mm 440
• Frequency Hz 70
• Centrifugal force kN 15
• Area output m²/h 416
• Max. Feed rate m/min 15 - 20
• Vibration shocks vpm 4200
• Compaction depth cm 30
• Max. permissible inclination of the motor 20°.
• Vibration level m/s²
• Sound power level LWA 108 dB(A)
• Operating weight kg approx. 95
• Transport weight (net/gross) kg approx. 98.8 / 107.3
• Packaging dimensions (L/W/H): mm 640 / 480 / 720
