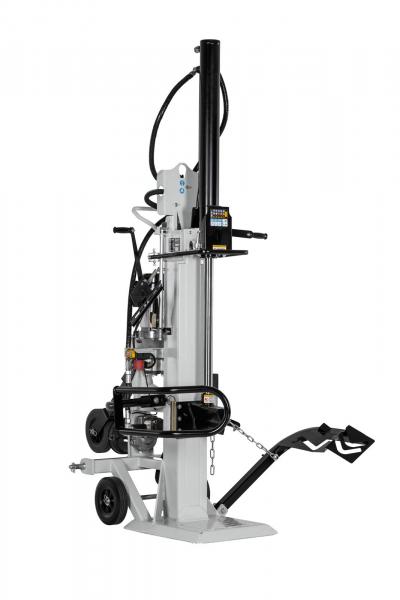

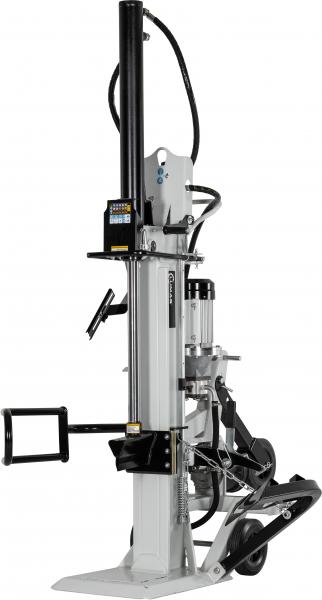

Lumag PROFI firewood splitter with electric motor and HEZ-18N combination drive

Technical facts Lumag PROFI firewood splitter with electric motor and HEZ-18N combination drive:

• Vertical hydraulic splitter with electric motor
• Sturdy frame and robust splitting wedge
• With 2 splitting speeds and reverse as standard
• Adjustable splitting stroke
• Cylinder can be lowered for transport and storage
• Mechanical 2-hand operation
• Depth adjustment for fatigue-free working

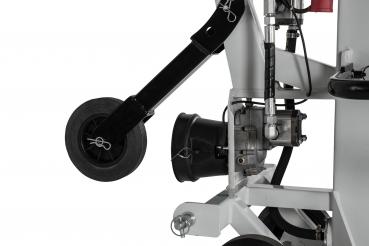

• With 3-point suspension for model series HEZ

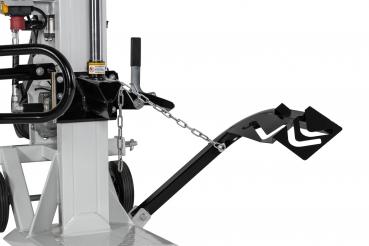

• Both models with mechanical log pick-up
• Transport wheels
• NEW also available with hydr. winch for model with PTO

Technical data Lumag PROFI firewood splitter with electric motor and HEZ-18N combination drive:

• Drive: electric motor 4.5 kW S6 40% 400V, IP54 and power take-off transmission
• Max. splitting force: 18t ±10%.
• Splitting stroke: 94.8 cm
• Splitting length: 560 - 1100 mm
• Splitting material Ø: 80 - 320 mm
• Hydraulic pressure max:. 27,8 MPa
• Oil capacity max: 24.0 litres
• Three-point suspension - Cat. I + II
• PTO speed - 540 1/min
• Tractor power - 20 hp
• Working speed: 4.8 / 13.5 cm/s
• Reverse speed: 6.4 cm/s
• Dimensions: 105 x 170 x 250 cm
• Weight (net / gross): 310.0 / 322.7 kg
• Packing dimensions (W x D x H): 94 x 68 x 200 cm
• Art. No. HEZ18N
• EAN 40 47424 00850 8
• 5HSW2 Cable winch(2), optional No
