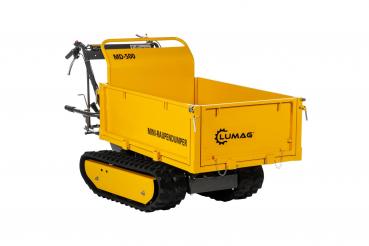

Lumag MINI-RAUPENDUMPER MD-500

Technical facts Lumag MINI-RAUPENDUMPER MD-500:

• The small multi-talent MD-500 helps where work used to be tedious.
• For example, moving loads on demanding terrain or transporting timber and bulky goods.

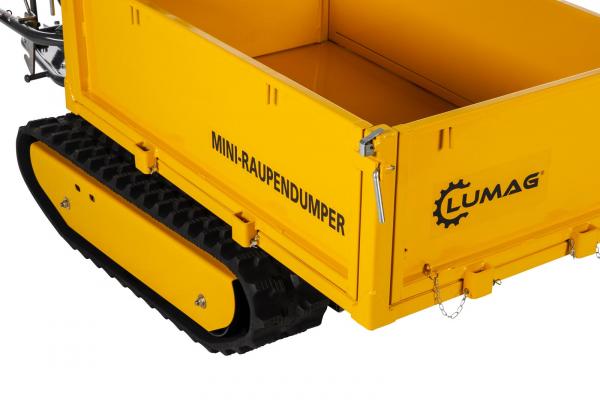

• The tipping container makes emptying easy.
• Incl. gas pressure spring, for easier unloading of the skip.

Technical data Lumag MINI-RAUPENDUMPER MD-500:

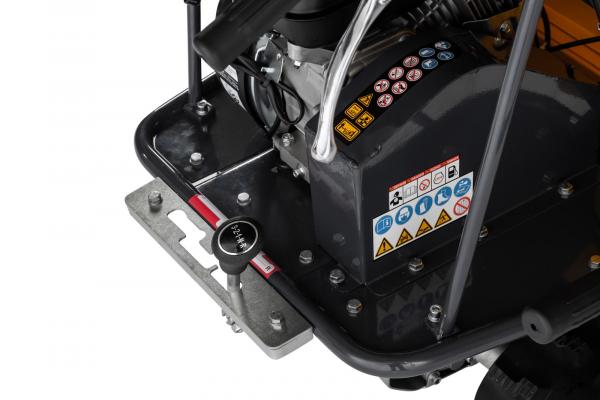

• Engine 1-cylinder 4-stroke OHV engine for unleaded petrol
• Displacement 196 cm³
• Power 4.1 kW (6.5 hp)
• Operating speed 3600/min
• Starting device Reversing starter
• Drive Gear transmission
• Brake Automatic safety brake
• Steering Steering brake
• Height of platform gates 325mm
• Own weight 228 kg
• Max. load 500 kg
• Tipping device Mechanical
• Working speed Gear 1 forward - approx. 1.6 km/h / Gear 2 forward - approx. 2.9 km/h / Gear 3 forward - approx. 3.6 km/h / Gear 1 reverse - approx. 1.2 km/h
• Dimensions 1725 / 750 / 1010 mm
