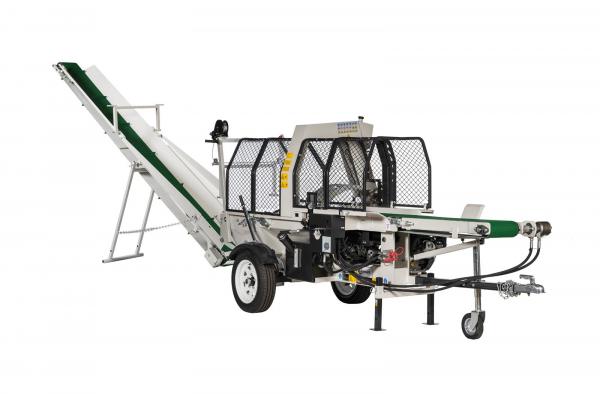

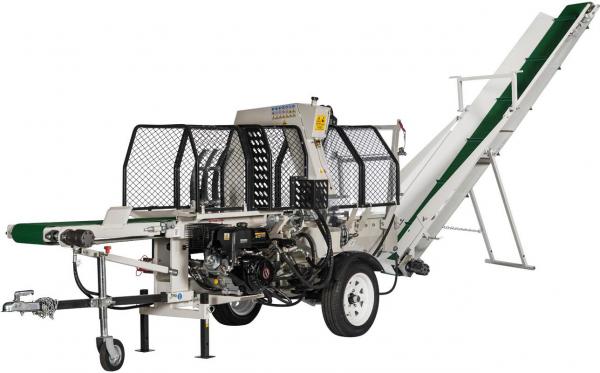

Lumag hydraulic saw blade machine with petrol engine SSA-500GHPRO
Technical facts Lumag hydraulic saw blade machine with petrol engine SSA-500GHPRO:
- Simple and easy operation.
- Processing of logs by sawing and splitting in one pass

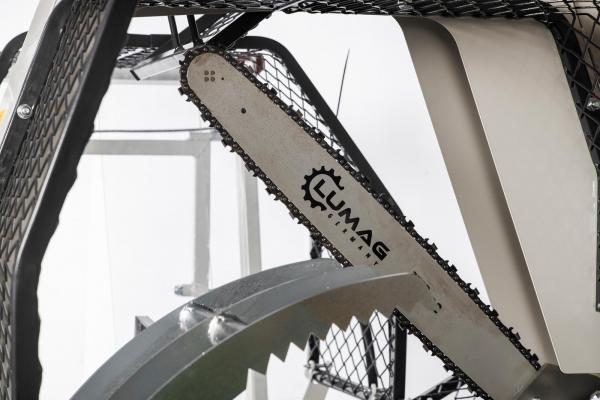

- The chain saw is equipped with a STIHL brand saw chain
- 5-8 m³ of wood/hour can be processed.
- Automatic removal of the material by means of a belt conveyor
- Powerful 9.2 kW petrol engine for speedy work even with larger logs up to 50 cm in diameter

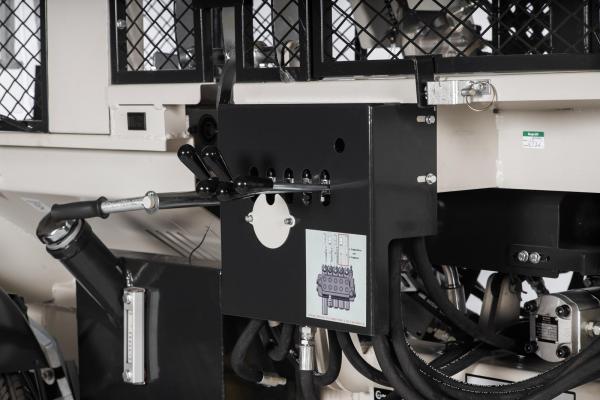

- Hydraulic chainsaw and log holder operation for quick & easy work

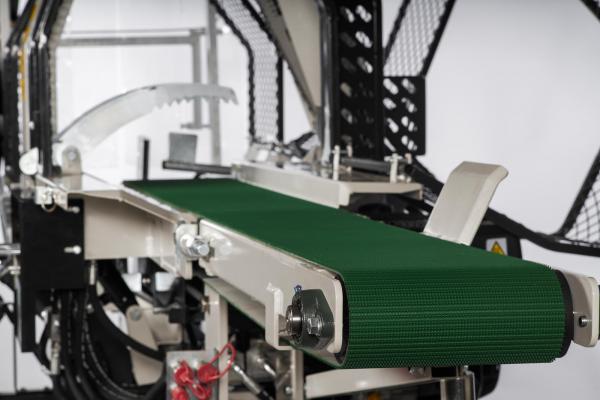

- Integrated, hydraulic conveyor belt to supply the saw blade machine with material
Technical data Lumag hydraulic saw log machine with petrol engine SSA-500GHPRO:
- Engine / Drive Petrol engine 420cm³, 9,2kW
- Hydraulic motor chain saw max. 4.500 rpm
- Hydraulic motor conveyor belt max. 284 rpm
- at 110 bar, 285 Nm
- Chainsaw hydraulic
- Chain (STIHL) C3621 000 0077/0.375/1,5mm
- Bar 55cm
- Splitting length max. cm 50
- Splitting diameter max. cm 10-50
- Working speed cm/s 5
- Return speed cm/s 4
- Splitting force t 20
- Infeed conveyor (LxW) mm 2150 x 250
- Conveyor belt (LxWxH) mm 3200 x 200 x 2200
- Conveyor speed (discharge belt/feed belt) m/s 0.5
- Weight incl. discharge conveyor kg 730 (620 + 110kg)
- Packing dimensions (L/W/H): Automatic saw blade machine mm 2000 x 1000 x 1200
- Infeed conveyor mm 1150 x 680 x 380
- Conveyor belt mm 1850 x 450 x 570
