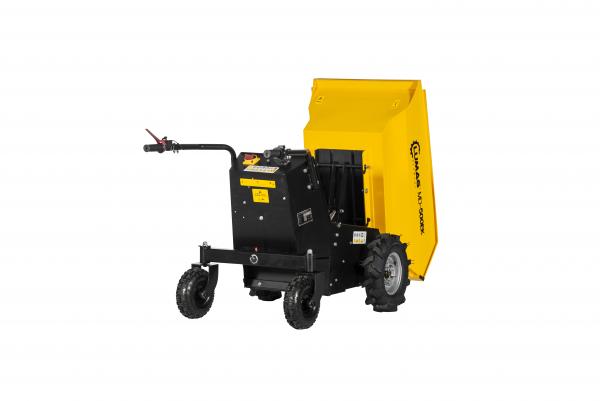

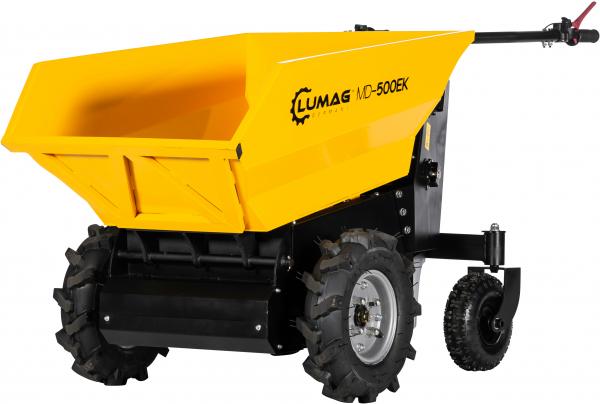

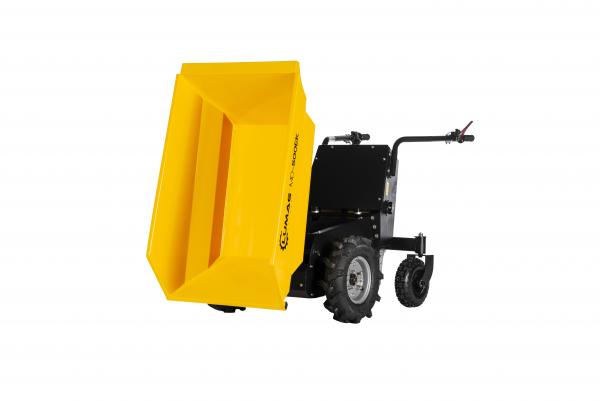

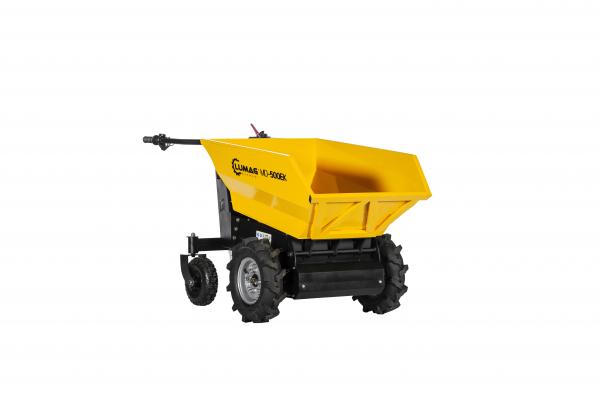

Lumag ELECTRIC DUMPER with electronic tipping function MD-500EK

Technical facts Lumag ELECTRIC DUMPER with electronic tipping function MD-500EK:

• MD-500EK - the versatile, silent and environmentally friendly electric dumper!
• As a perfect helper for all transport work, the MD-500EK provides valuable services in many industries, for a wide range of activities.
• Its electric tipping function makes unloading child's play.
• The MD-500EK transports loads of up to 500 kg without any problems and does so absolutely quietly thanks to its purely electric drive!
• An extremely narrow design and compact dimensions bring the MD-500EK safely to the place of use even through narrow gates and paths.
• The 48V charger and the battery set (4 x 12 V, 20 Ah) are included in delivery!
• The electric dumper can also be used indoors!

Technical data Lumag ELEKTRO DUMPER with electronic tipping function MD-500EK:

• Motor power 1000 W
• Rated voltage 48 V
• Drive 100% electric
• Brake system Electromagnetic brake
• Tipping container length 1050 mm/width 720 mm/depth 400 mm
• Max. load 500 kg
• Max. operating time: 4 h
• Charging time (with fully discharged battery) approx. 12h
• Working speed (infinitely variable) forward 0 - 5.0 km/h / reverse 0 - 3.0 km/h
• Pneumatic tyres with cleated tread: front 4.00 - 8/rear 4.10 - 4
• Weight (nto/bto) 215 / 230 kg
• Packing L/W/H 1360 / 800 / 880 mm
