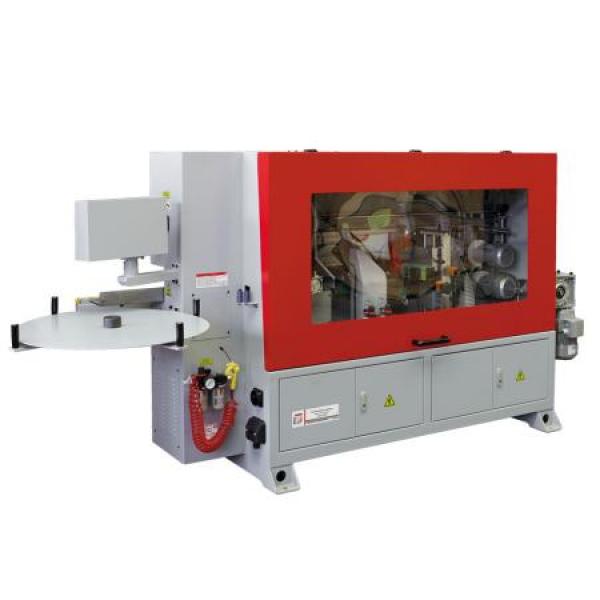

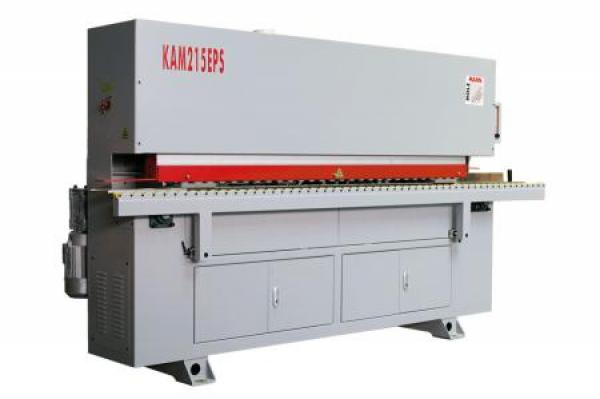

KAM215EPS400V Holzmann edge banding machine

Product highlights KAM215EPS400V Holzmann edge banding machine​

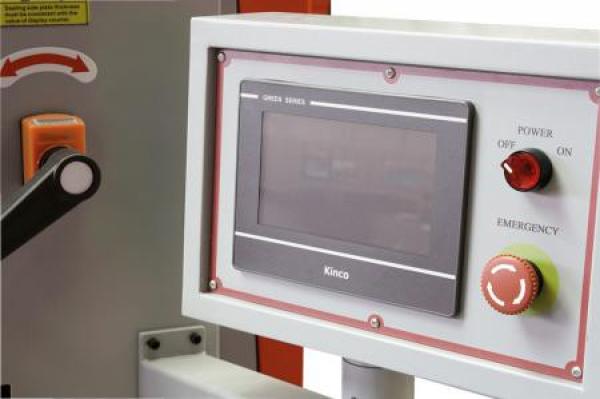

• Touch screen display
• one-sided automatic edge banding machine

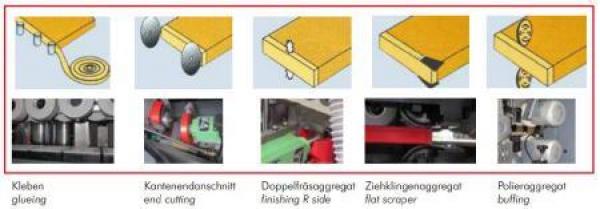

• Direct glue delivery to straight workpieces
• Unit adjustment equipped with counter for setting different edge types
• Milling of the edge overhang at the edge (top/bottom) flush with form cutter or with a radius of 2 mm
• Precise cutting of the laminate (back/front) by means of a cross-cut saw unit
• straight scraper unit
• Pressure rollers ensure an ideal connection between laminate and workpiece
• automatic and constant plate feed
• Gluing temperature can be set electronically on the touch display

Technical data KAM215EPS400V Holzmann edge banding machine​

• Motor power S1 in W: 6150
• Feed speed: 13 m/min
• voltage: 400V / 3x50hHz

• Installation dimensions in mm: 3130x1130x1340
• Suction connection in mm: Ø100
• Gross weight in kg: 910

• min. workpiece thickness in mm: 10 - 50
• min. workpiece length in mm: 120
• min. workpiece width in mm: 80

• Saw blade (/hole) in mm: Ø 104x22x3

• edge thickness in mm: 0.4 - 3
• Working air pressure in bar: 6
