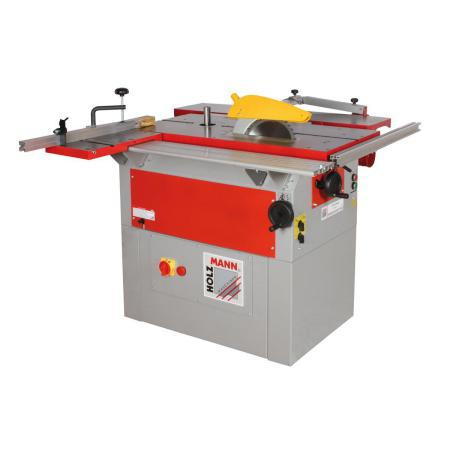

K5260L400V Holzmann 5x combination

Product highlights K5260L400V Holzmann 5x combination​

• compact multifunctional machine with optimum price-performance ratio, ideal for ambitious do-it-yourselfers

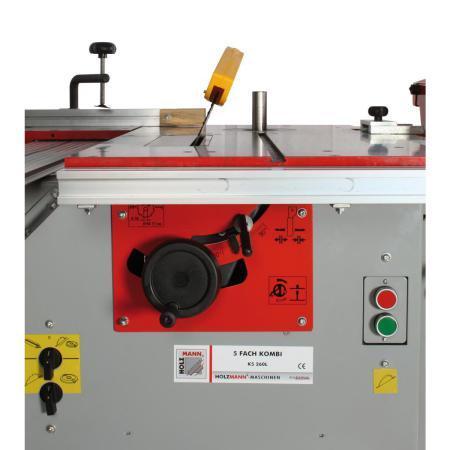

• Circular saw blade can be swivelled up to 45° via hand wheel
• Largely dimensioned grey cast iron worktable with angle stop (up to +/- 45°) in T-slot guide
• The function is conveniently selected by means of a rotary switch
• three powerful motors ensure sufficient power
• solid 3-knife planing shaft with pre-mounted HSS knives

Scope of delivery K5260L400V Holzmann 5x combination​

• Cutter protection bonnet,
• Angle stop,
• Hold-down device,

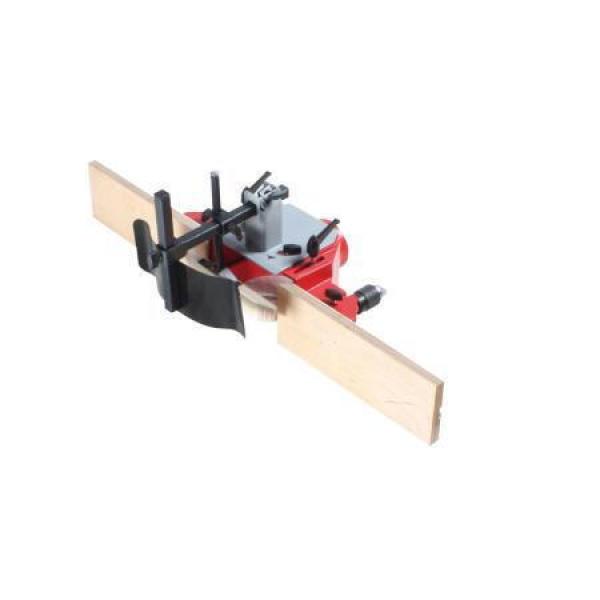

• Mitre fence with flip stop,
• Parallel fence,

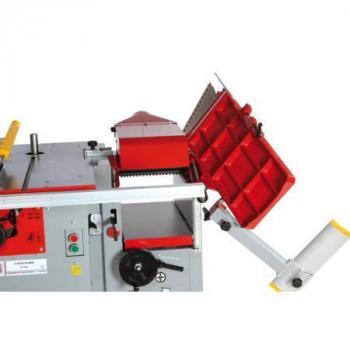

• Dressing fence (90°-45° pivoting),
• Planer knife setting gauge,
• Operating tool.
• Long hole drilling device (K5260LLL) optionally available

Technical data K5260L400V Holzmann 5x combination​

• Length of mounting table in mm: 1090
• Swivel range of dressing fence: 90-45
• Dressing fence in mm: 715x130
• Dressing max. chip removal in mm: 5

• Motor power S1 in W: 2200 / 1500 / 1500
• Motor power S6 in W: 3100 / 2100 / 2100
• feed speed: 8
• voltage: 400V

• Format sliding table in mm: 250x400
• Suction connection in mm: 100
• Table height in mm: 840
• Table size in mm: 980x470
• Gross weight in kg: 390

• max. cutting height 90° in mm: 78
• max. cutting height 45° in mm: 60
• Cutting width at rip fence in mm: 510

• Diffuser height in mm: 5-195

• Number of planing knives: 3
• planing shaft speed in min-1: 4500
• Planer shaft diameter in mm: 75

• max. tool diameter above table in mm: 160
• Milling fence in mm: 350x125
• Table opening in mm: 145
• max. tool diameter retractable in mm: 140
• max. clamping height in mm: 80
• spindle stroke in mm: 100
• milling spindle speed in min-1: 6500
• milling spindle diameter in mm: 30

• Saw blade (/hole) in mm: 254
• Saw blade speed in min-1: 4750
