Advantages of JUNG transport undercarriages (armoured rollers):
The steering gears have galvanised axles, bolts and retaining rings and are thus optimally protected against corrosion.
Due to the innovative construction of the housing, the steering gear has an optimal performance and weight ratio.
All armoured castors are delivered fully assembled and are therefore ready for immediate use!
The steering gear is supplied with a ball-bearing turntable and drawbar. The drawbar of the JLB 3 K is without towing eye.
The trolleys are ANSI ⁄ ASME (USA) tested.

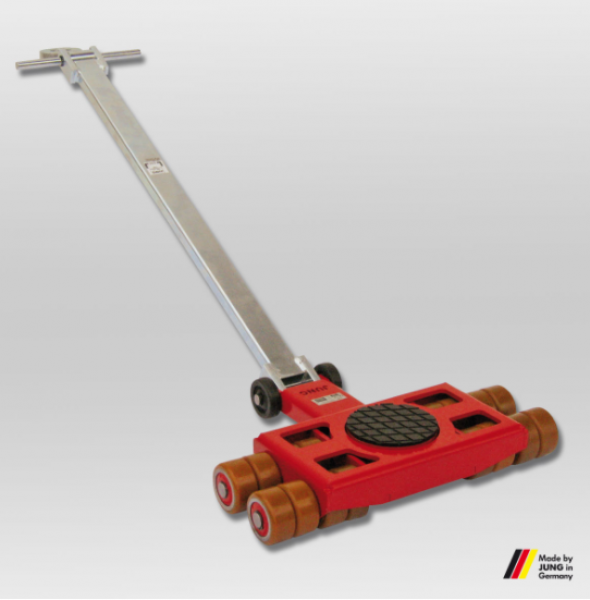

Technical data Jung transport chassis JL 7 K - steering gear:
| Titel |
Einheit |
Daten |
| Traglast |
kg |
7000 |
| Anzahl der Doppelrollen |
Stück |
8 |
| Abmessungen der Rollen Ø x Rollenlänge |
mm |
85 x 85 |
| Einbauhöhe |
mm |
110 |
| Auflagefläche Drehteller Ø |
mm |
150 |
| Abmessungen Lenkwerk |
mm |
445 x 590 |
| Lenkstange mit Zugöse |
mm |
1120 |
| Gewicht Professional |
kg |
35 |
