Advantages of JUNG H series transport trolleys (armoured rollers)
- Despite the very high load capacity, the transport trolleys are comparatively small and light.
- The steering mechanisms have galvanised axles, bolts and retaining rings and are thus optimally protected against corrosion.
- The mechanical self-aligning bearings of the cassettes or axles ensure an even load on the rollers and the floors. Susceptible and costly hydraulic balancing can be dispensed with.
- All armoured castors are delivered fully assembled and are therefore ready for immediate use!
- The castor is supplied with a ball-bearing turntable and drawbar. The drawbar has a towing eye
Ball-bearing castors are used for the JUNG transport trolleys for easy and smooth running. The castors have a low-wear lining as standard - the JUWAthan plus lining.
The armoured castors are also available as a Professional version with JUWAthan double castor. Due to the halved roller width and the double number of rollers, the steering movements are significantly facilitated and the frictional forces during cornering are greatly reduced.

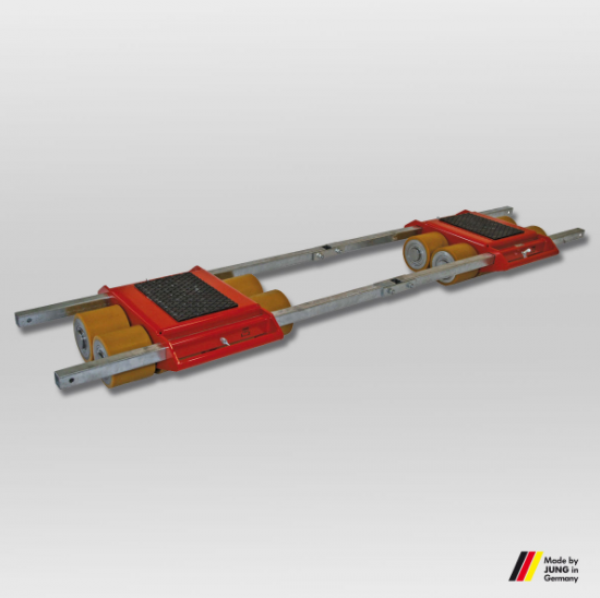

Technical details Jung transport chassis JFB 80 H with JUWAthan:
| Titel |
Einheit |
Daten |
| Traglast |
kg |
2 x 40000 |
| Anzahl der Rollen |
Stück |
16 |
| Abmessungen der Rollen Ø x Rollenlänge |
mm |
200 x 170 |
| Einbauhöhe |
mm |
240 |
| Auflagefläche je Kassette |
mm |
400 x 260 |
| Abmessungen Kassette |
mm |
750 x 820 |
| Verbindungsstange mit Gelenk |
mm |
2 x 3000 |
| Kassetten verstellbar |
mm |
830 - 2530 |
| Gewicht JUWAthan® |
kg |
565 |
