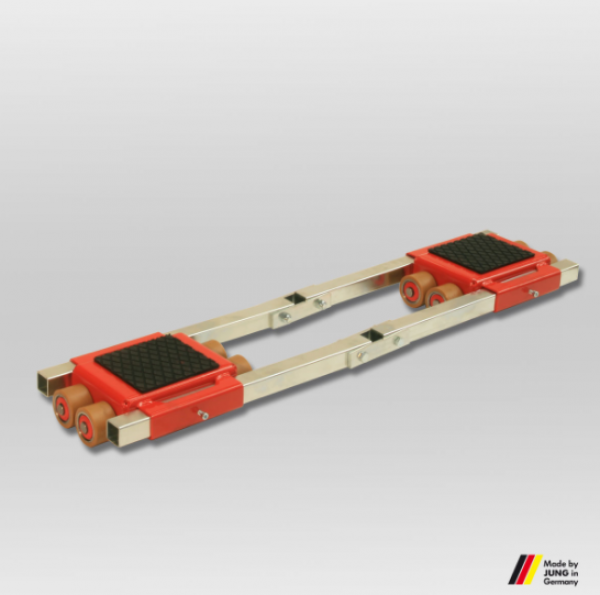

Jung transport chassis JFB 24 S with Juwathan rollers
Advantages of JUNG S series transport trolleys (armoured rollers)
- The steering mechanisms have galvanised axles, bolts and circlips and are thus optimally protected against corrosion.
- Due to the narrow rollers (60 mm running width), the steering movements are significantly facilitated and the frictional forces are greatly reduced during cornering.
- All armoured castors are delivered fully assembled and are therefore ready for immediate use!
- The steering gear is supplied with a ball-bearing turntable and drawbar. The drawbar has a towing eye
- The trolleys are ANSI ⁄ ASME (USA) tested.
Technical data Jung transport chassis JFB 24 S with Juwathan rollers:
Titel | Einheit | Daten |
---|---|---|
Traglast | kg | 2 x 12000 |
Anzahl der Rollen | Stück | 24 |
Abmessungen der Rollen Ø x Rollenlänge | mm | 90 x 60 |
Einbauhöhe | mm | 125 |
Auflagefläche je Kassette | mm | 200 x 220 |
Abmessungen Kassette | mm | 370 x 465 |
Verbindungsstange mit Gelenk | mm | 2 x 1540 |
Gewicht JUWAthan® | kg | 80 |
Kassetten verstellbar | mm | 660-1300 |
