Advantages of JUNG G series transport trolleys (armoured rollers):
The castors have galvanised axles, bolts and retaining rings and are thus optimally protected against corrosion.
The mechanical self-aligning bearing of the cassettes or axles causes an even load on the rollers and the floors. Susceptible and costly hydraulic balancing can be dispensed with.
Due to the halved roller width and the doubled number of rollers, the steering movements are considerably facilitated and the frictional forces during cornering are greatly reduced.
Due to the installation height of 140 mm, the steering gears are compatible with all other G series undercarriages.
All armoured castors are supplied fully assembled and are therefore ready for immediate use!
The steering gear is supplied with a ball bearing turntable and drawbar. The drawbar has a towing eye
Ball-bearing castors are used for the JUNG transport trolleys for easy and smooth running. The castors have a low-wear lining as standard - the JUWAthan plus lining.

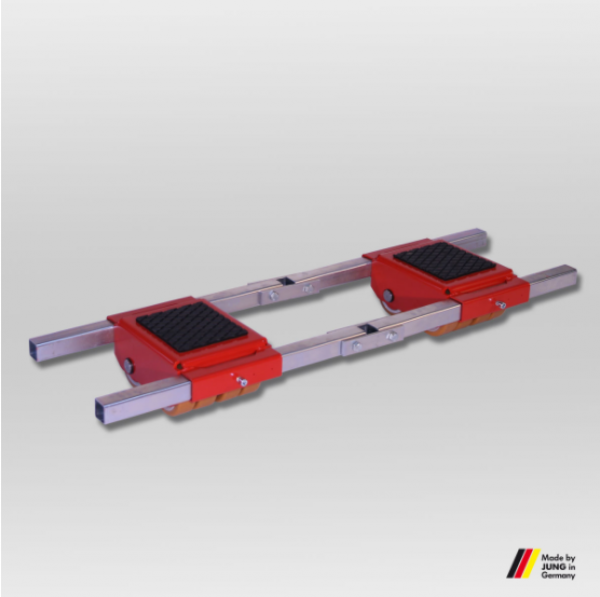

Technical data Jung transport chassis JFB 20 G:
| Titel |
Einheit |
Daten |
| Traglast |
kg |
2 x 10000 |
| Anzahl der Rollen |
Stück |
16 |
| Abmessungen der Rollen Ø x Rollenlänge |
mm |
140 x 59 |
| Einbauhöhe |
mm |
180 |
| Auflagefläche je Kassette |
mm |
220 x 200 |
| Abmessungen Kassette |
mm |
460 x 285 |
| Verbindungsstange mit Gelenk |
mm |
2 x 1540 |
| Kassetten verstellbar |
mm |
475 - 1300 |
| Gewicht JUWAthan®plus |
kg |
88 |
