Advantages of JUNG transport undercarriages (armoured rollers):
The steering gears have galvanised axles, bolts and retaining rings and are thus optimally protected against corrosion.
Due to the innovative construction of the housing, the steering gear has an optimal performance and weight ratio.
All armoured castors are delivered fully assembled and are therefore ready for immediate use!
The steering gear is supplied with a ball-bearing turntable and drawbar. The drawbar of the JLB 3 K is without towing eye.
The trolleys are ANSI ⁄ ASME (USA) tested.

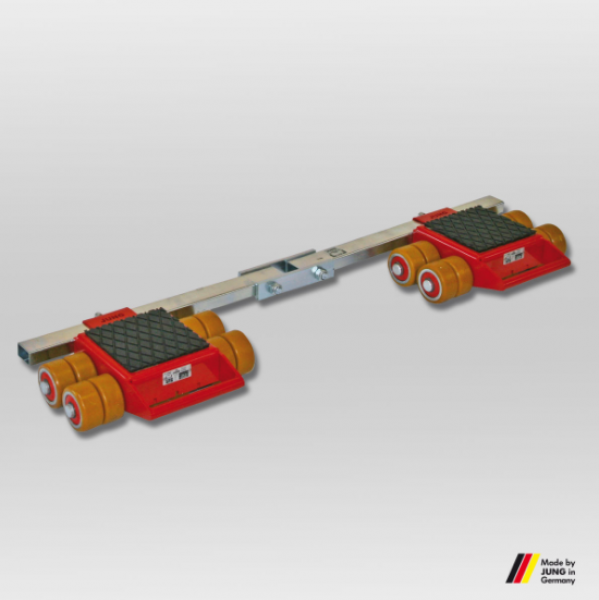

Technical data Jung transport chassis JFB 10 K - Chassis:
| Titel |
Einheit |
Daten |
| Traglast |
kg |
2 x 5000 |
| Anzahl der Doppelrollen |
Stück |
12 |
| Abmessungen der Rollen Ø x Rollenlänge |
mm |
85 x 85 |
| Einbauhöhe |
mm |
110 |
| Auflagefläche je Kassette |
mm |
170 x 170 |
| Abmessungen Kassette |
mm |
325 x 390 |
| Verbindungsstange mit Gelenk |
mm |
1230 |
| Kassetten verstellbar |
mm |
400 - 1030 |
| Gewicht Professional |
kg |
34 |
