Advantages of electrically driven transport undercarriages
No separate tractor required.
Practical, with battery and handy radio remote control! The remote control can be switched from two-hand to one-hand operation (flexible left/right). The one-handed operation makes it easy to drive the undercarriage exactly straight ahead.
High running time (under full load in ideal conditions) due to direct-drive motor.
Short charging time of the self-propelled transport undercarriage JLA-e 5/12 G: approx. 3-4 hours.
Rotatable through 360°.
Infinitely variable speed.
Compact external dimensions.
Suitable for the armoured rollers of the G series. The trolleys are not included in the scope of delivery.
Stroke possible on request
LiFePo battery technology
Charger switchable 110V/220V
Tested according to DGUV V68 (D)

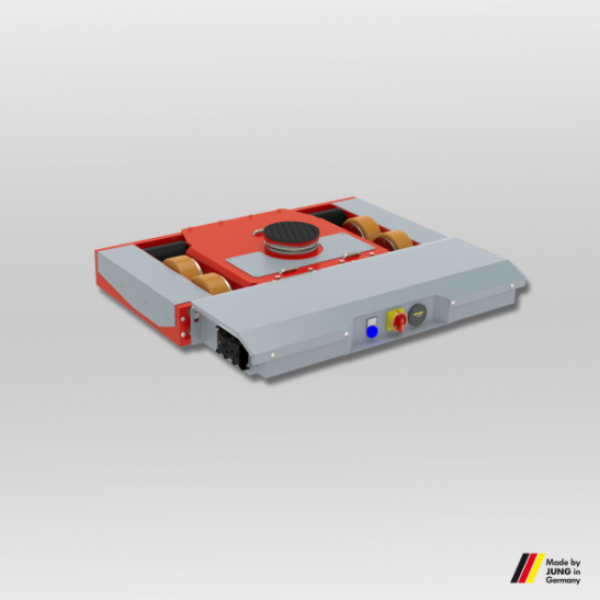

Technical data Jung transport chassis driven JLA-e 5/12 G plus JFB 7 K:
| Titel |
Einheit |
Daten |
| Traglast |
kg |
5000 |
| Zuglast |
kg |
12000 |
| Anzahl der Rollen |
Stück |
4 |
| Abmessungen der Rollen Ø x Rollenlänge |
mm |
140 x 59 |
| Einbauhöhe |
mm |
180 |
| Auflagefläche Drehteller Ø |
mm |
150 |
| Abmessungen Kassette |
mm |
760 x 880 |
| Gewicht ohne Akku + Fernbedienung |
kg |
136 |
| Gewicht Akku + Kiste |
kg |
36 |
| Gewicht Ladegerät |
kg |
3 |
| Geschwindigkeit |
m/min |
10 |
| Laufzeit |
h |
3-4 |
| Akku mit Ladegerät |
Stück |
1x |
| Funkfernsteuerung, Ladegerät und Gürtel mit Halterung |
Stück |
1x |
