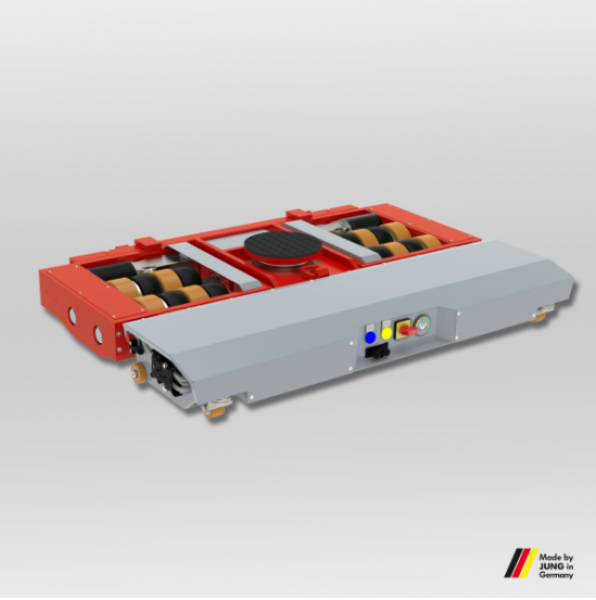

Jung transport chassis driven JLA-e 15/30 G
Advantages of electrically driven transport undercarriages
No separate tractor required.
Practical, with battery and handy radio remote control! The remote control can be switched from two-hand to one-hand operation (flexible left/right). The one-handed operation makes it easy to drive the undercarriage exactly straight ahead.
High running time (under full load in ideal conditions) due to direct-drive motor.
Short charging time of the self-propelled transport undercarriage JLA-e 5/12 G: approx. 3-4 hours.
Rotatable through 360°.
Infinitely variable speed.
Compact external dimensions.
Suitable for the armoured rollers of the G series. The trolleys are not included in the scope of delivery.
Stroke possible on request
LiFePo battery technology
Charger switchable 110V/220V
Tested according to DGUV V68 (D)
Technical data Jung transport chassis driven JLA-e 15/30 G:
Titel | Einheit | Daten |
---|---|---|
Traglast | kg | 15000 |
Zuglast | kg | 30000 |
Anzahl der Rollen | Stück | 16 |
Abmessungen der Rollen Ø x Rollenlänge | mm | 140 x 59 |
Einbauhöhe | mm | 180 |
Auflagefläche Drehteller Ø | mm | 215 |
Abmessungen | mm | 860 x 1200 |
Gewicht ohne Akku + Fernbedienung | kg | 213 |
Gewicht Akku + Kiste | kg | 90 |
Gewicht Ladegerät | kg | 16 |
Geschwindigkeit | m/min | 6,5 |
Laufzeit | h | 5-6 |
Akku mit Ladegerät | Stück | 1x |
Funkfernsteuerung, Ladegerät und Gürtel mit Halterung | Stück | 1x |
