Advantages of JUNG tandem trolleys of the K Professional series (armoured rollers):
Tandem trolleys are particularly suitable for use when a corresponding centre support point is missing when transporting a load
The steering units have galvanised axles, bolts and circlips and are thus optimally protected against corrosion.
Due to the split castors, the steering movements are considerably facilitated and the frictional forces during cornering are significantly reduced.
All armoured castors are delivered fully assembled and are therefore ready for immediate use!
The tandem chassis includes 2 steering units, 2 drawbars and 1 set of connecting rods each.
The undercarriage can also be used individually without further accessories, each with half the load.
Adjustable tandem steering gear also available in other lengths.
Ball-bearing rollers are used for the JUNG tandem trolleys for easy and smooth running. The rollers have a low-wear lining as standard - the JUWAthan plus lining.

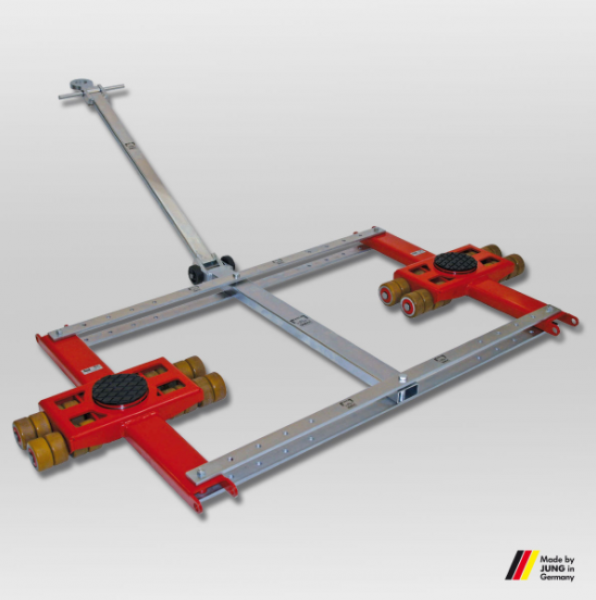

Technical details Jung Tandem Trolley JTLB 14 K:
| Titel |
Einheit |
Daten |
| Traglast |
kg |
14000 |
| Anzahl der Doppelrollen |
Stück |
16 |
| Abmessungen der Rollen Ø x Rollenlänge |
mm |
85 x 85 |
| Einbauhöhe |
mm |
110 |
| Abmessungen Lenkwerk |
mm |
1000 x 590 |
| Auflagefläche Drehteller Ø |
mm |
150 |
| Breite Spur- und Verbindungsstange |
mm |
1400 |
| Tandemlenkwerk verstellbar von |
mm |
660 - 1340 |
| Verstellbarkeit |
x |
5 |
| Gesamtlänge und Gesamtbreite |
mm |
1070 x 1580 |
| Lenkstange mit Zugöse |
mm |
1120 |
| Gewicht Professional |
kg |
104 |
