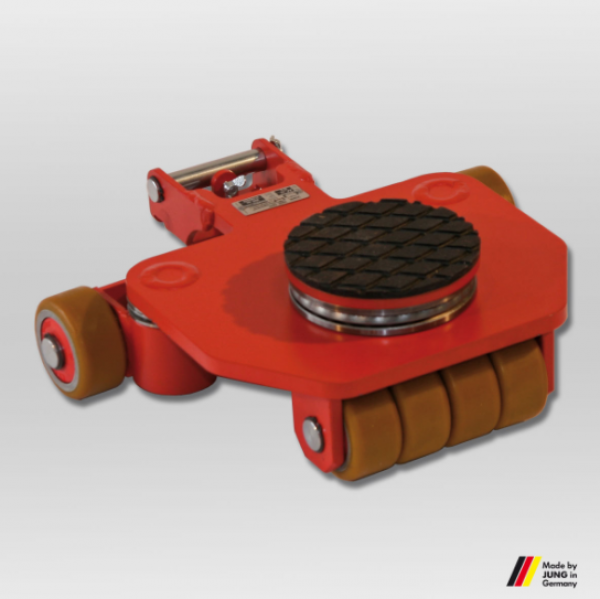

Advantages of JUNG servo trolleys of the M series (armoured rollers)
The swivelling castors reduce the steering force from a standing position by up to 80 %. This results in a particularly ergonomic and effort-saving operation of the armoured rollers by the user.
Track-following travel is ensured by the rigid rear axle with Professional castors (double castors).
Each trolley cassette can be used as a steering gear, trolley or tandem trolley.
Due to the ball-bearing turntable with non-slip coating, the armoured castors are very easy to manoeuvre.
The trolley moves heavy loads despite its low own weight.
The patented trolleys are tested according to ANSI ⁄ ASME (USA). (Design patent EU No. 002267487- 001).
The trolleys are equipped with high-quality polyurethane-based castors - the so-called JUWAthan plus castors. Due to the optimised covering thickness, the rolling resistance has been optimised and a weight reduction has been achieved. The covering is suitable for conditionally contaminated industrial floors with small steps and unevenness.
Drawbars and connecting rods are available as accessories.
Technical data Jung servo trolley JLF 3.5:
Titel
Einheit
Daten
Traglast
kg
3500
Anzahl der Rollen / Doppelrollen
Stück
4 / 2
Abmessungen der Rollen Ø x Rollenlänge
mm
85 x 43
Einbauhöhe
mm
150
Auflagefläche Drehteller Ø
mm
150
Abmessungen
mm
410 x 420
Gewicht JUWAthan®plus
kg
25
