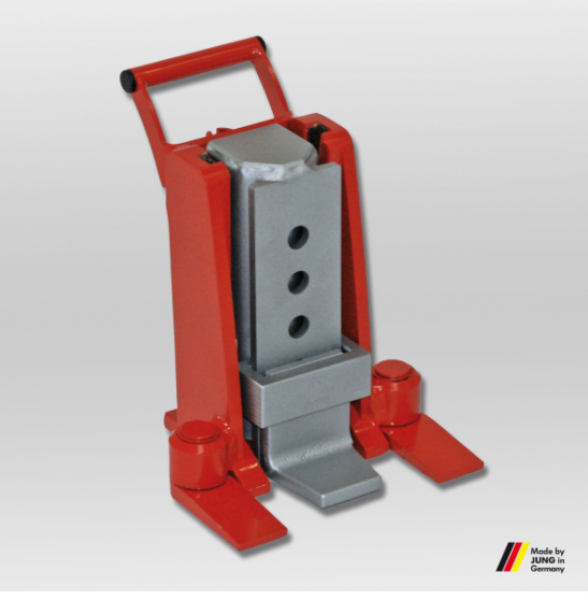

Jung Machine Jack JH 10 G plus EX
Advantages of the Jung machine jacks - JH G plus EX series
Reduced friction due to sliding shoes, each of which is movable in its seat. A considerably larger surface area is available for power transmission in every operating condition than with conventional devices. The advantages of this are less wear on the guides and higher efficiency.
Low maintenance costs due to removable lifting unit and replaceable sliding shoes.
Extremely lightweight with high performance due to high-quality materials and innovative design.
The swivelling lug ensures optimum adaptation to the load at all times. Always safe stability, even when lifted.
Technical data Jung machine jack JH 10 G plus EX:
| Titel |
Einheit |
Daten |
| Traglast auf der Kopfplatte |
kg |
10000 |
| Hubhöhe |
mm |
150 |
| Kleinste Ansetzhöhe mit Lasche |
mm |
15 |
| Größte Ansetzhöhe Lasche |
mm |
180 |
| Verstellbarkeit der Lasche |
mm |
5 x 41 |
| Ansetzhöhe mit Kopfplatte |
mm |
275 |
| Laschenbreite Vorderkante |
mm |
60 |
| Nutzbare Laschentiefe |
mm |
55 |
| Länge Füße nach vorne geschwenkt |
mm |
270 |
| Länge Füße zur Seite geschwenkt |
mm |
210 |
| Breite |
mm |
247 |
| Gesamthöhe |
mm |
310 |
| Zylindervolumen |
L |
0,3 |
| Gewicht |
kg |
24 |
