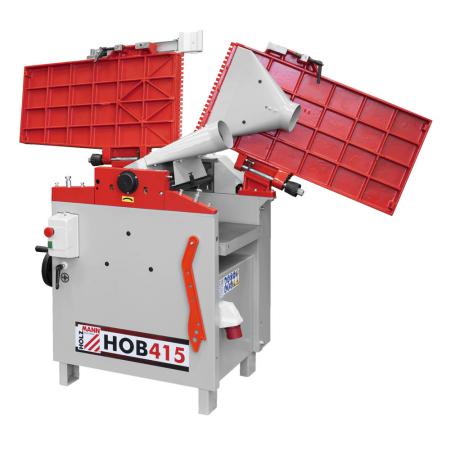

HOB415400V Holzmann surface and thickness planer

Product Highlights HOB415400V Holzmann surface and thickness planer​

• High quality processing
• Cast iron table with polished surface
• precision-beared 3-knife shaft
• Thicknessing table with central column guide; additional guide and scale for stroke indication
• folding dressing table
• stable dressing fence swivels 90°-45
• 405mm thicknessing planing width and 410mm dressing width

Scope of delivery HOB415400V Holzmann surface and thickness planer​

• Strip planing knife (410 x 3 x 30mm) mounted,
• Dressing fence;
• planing knife setting gauge

Technical data HOB415400V Holzmann surface and thickness planer​

• Dresser Table size in mm: 1800 x 430
• Dressing max. chip removal in mm: 4
• Dressing stop in mm: 1365 x 155
• Swivel range of dressing stop: 90°-45
• Dressing table height in mm: 890

• Motor power S6 in W: 4000
• voltage: 400V / 3 / 50Hz
• feed speed: 7m/min

• Table height in mm: 890
• Suction connection in mm: 120
• Installation dimensions in mm: 1860 x 735 x 1085
• Gross weight in kg: 433

• Thickness planer Table size in mm: 750 x 408
• Thickness planing max. chip removal in mm: 5
• passage height in mm: 230

• Planer shaft diameter in mm: 95
• Planer shaft speed in min-1: 4200
• Number of planing knives: 3

• Sound power level in dB(A): 102.6
• Sound pressure level in dB(A): 96.8
