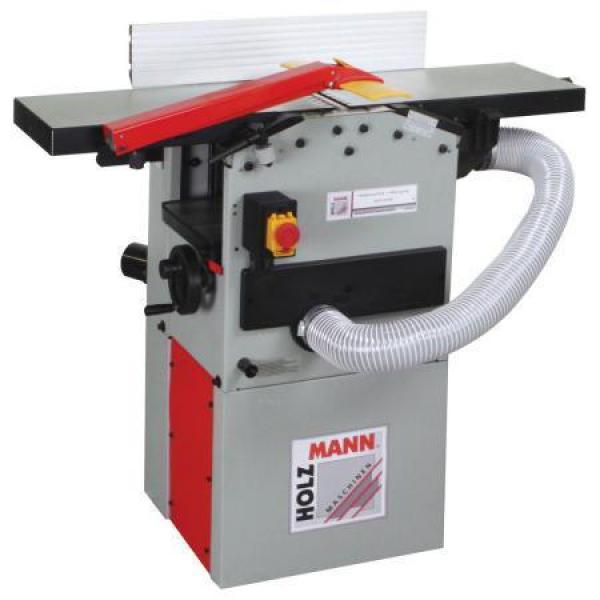

HOB260ABS400V Holzmann surface and thickness planer

Product Highlights HOB260ABS400V Holzmann surface and thickness planer​

• Combi machine with integrated suction
• Conversion to thicknessing function with swivelling dressing table
• Lips in the dressing tables for noise reduction
• Suction bag for easy replacement externally at the machine
• Dressing table made of solid die-cast aluminium
• Substructure included in delivery
• swivelling aluminium truing fence
• Feed can be switched off

Scope of delivery HOB260ABS400V Holzmann surface and thickness planer​

• integrated suction,
• Substructure,
• Planer knife mounted,
• Dust bag

Technical data HOB260ABS400V Holzmann surface and thickness planer​

• Dressing table height in mm: 890
• Dresser Table size in mm: 1050x260
• Swivelling range of dressing stop: 90° -45
• Dressing fence in mm: 610x110
• Dressing max. chip removal in mm: 3

• Motor power S1 in W: 1500
• Motor power S6 in W: 2100
• feed speed: 8
• voltage: 400V

• Suction connection in mm: 80
• Installation dimensions in mm: 1100x500x900
• Gross weight in kg: 88

• max. workpiece thickness in mm: 160

• Thickness planing max. chip removal in mm: 2
• thickness planer table size in mm: 480x254

• Planer shaft diameter in mm: 55
• Planer shaft speed in min-1: 6700
• Number of planing knives: 2

• Extraction capacity in m³/h: 270
