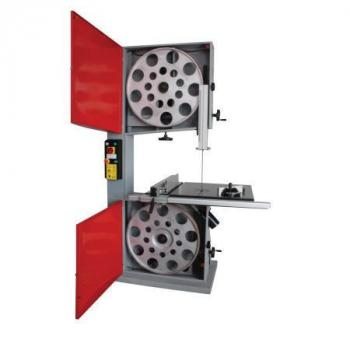

HBS800400V Holzmann wood band saw

Product Highlights HBS800400V Holzmann wood band saw​

• particularly high and qualitative processing
• Rubberised and precision-beared impellers enable low-noise operation
• Aluminium stop with quick release
• Scale at the stop with 2 magnifying glasses for exact reading and setting
• Cutting height adjustment easily and quickly adjustable via hand wheel Rack and pinion combination
• Saw band width from 19 mm to 50 mm possible
• tiltable work table from 0° - 45° via precision worm gear
• 2 connection possibilities for chip extraction (Ø100mm)

Technical data HBS800400V Holzmann wood band saw

• Motor power S1 in W: 5500
• Motor power S6 in W: 7700
• voltage: 400V

• Suction connection in mm: 2x100
• Table height in mm: 1050
• Projection in mm: 800
• Table size in mm: 700x900
• swivel range: 0° +45
• Gross weight in kg: 528

• max. cutting height 90° in mm: 470
• Cutting width at rip fence in mm: 640

• Saw band width in mm: 19-50
• Impeller diameter in mm: 810
• saw blade in mm: 5611
