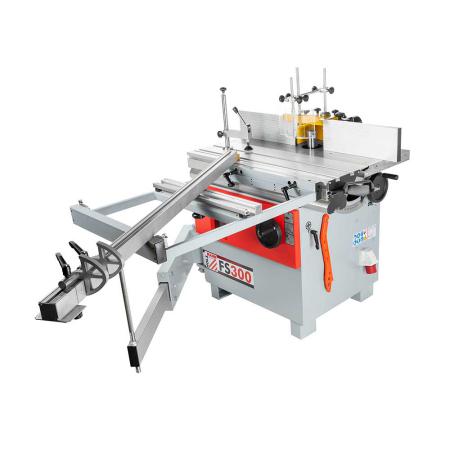

FS300400V Holzmann milling machine

• heavy, very high-quality overall design
• high-quality fence with hold-down system and fine adjustment
• 4 milling speeds
• Swivel spindle as standard,
• with under-table suction device as standard
• Installation dimensions (L x W x H):
  • 2155 x 990 x 1430 without sliding table
  • 2155 x 2400 (+1150) x 1430 with sliding table

Scope of delivery FS300400V Holzmann milling machine​

• Format sliding table incl. telescopic stop with 2 stop flaps and hold-down device,
• Cutter protection bonnet

Technical data FS300400V Holzmann milling machine

• Motor power S1 in W: 3000
• Motor power S6 in W: 4000
• voltage: 400V / 3 / 50Hz

• Table size in mm: 1000 x 350
• Table height in mm: 890
• Format sliding table in mm: 1000 x 310
• Suction connection in mm: 100
• Gross weight in kg: 343.50

• milling spindle diameter in mm: 30
• milling spindle speed in min-1: 1400 / 3500 / 6000 / 8000
• spindle stroke in mm: 130
• max. milling diameter in mm: 175
• Milling spindle swivel: (-5)0-45
• max. clamping height in mm: 140
• Table opening in mm: 178
• max. tool diameter retractable in mm: 170 (90°) , 100 (45°)
• max. tool diameter above table in mm: 200
• Milling fence in mm: 450 x 160 (L +R)

• Sound power level in dB(A): 96.8
• Sound pressure level in dB(A): 80.7
