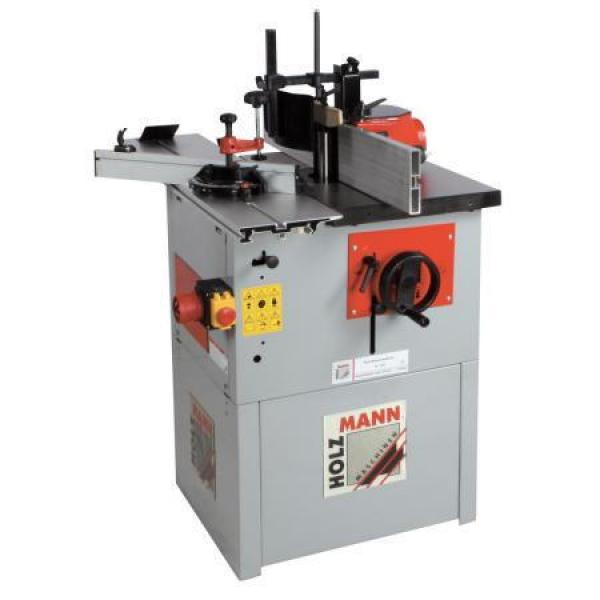

FS160L230V Holzmann milling machine

Product Highlights FS160L230V Holzmann milling machine

• Table milling machine with solid, torsion-free cast iron table and aluminium sliding table (1000x215mm)

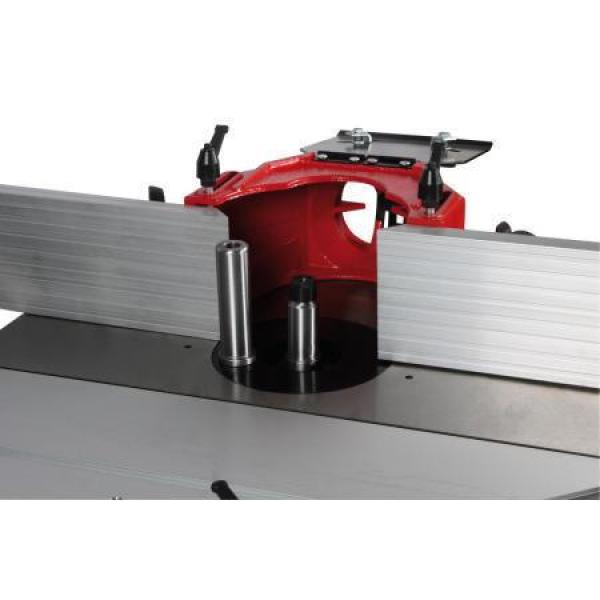

• Extra exchangeable spindle with holder for end mill as standard
• Mitre fence swivelling to 60° on both sides incl. flip stop and downholder for mitre and cross milling
• many application possibilities despite compact design and low space requirements
• dynamically balanced milling spindle for precise running
• Safe working thanks to standard milling protection according to CE, equipped with height-adjustable guide rail, guard plate, safety switch and emergency stop switch
• exchangeable spindle with collet chuck (Ø 12mm), mitre stop, clamp, fixing tool

Scope of delivery FS160L230V Holzmann milling machine​

• Cutter protection bonnet,
• Mitre fence,
• Exchangeable spindle

Technical data FS160L230V Holzmann milling machine​

• Motor power S1 in W: 1500
• Motor power S6 in W: 2100
• voltage: 230V

• Format sliding table in mm: 1000x220
• Suction connection in mm: 100
• Table height in mm: 850
• Table size in mm: 600x400
• Gross weight in kg: 114

• max. clamping height in mm: 105
• max. tool diameter retractable in mm: 150
• spindle stroke in mm: 110
• milling spindle speed in min-1: 1400/4000/6000/9000
• milling spindle diameter in mm: 30
• Table opening in mm: 170
• Milling fence in mm: 350x125
• max. tool diameter above table in mm: 170
